UK series Terminal Connector

  UK series combined terminal row adopts frame type screwconnection structure. The design complies with IEC60947-1, GB14048 standards, which is widely used in the circuit of AC 50Hz(60Hz), rated voltage 660V, DC 40V and below, rated sectional area 0.75~150mm2 connection conductor, it also is suitable for connecting the circle copper conductor of tube terminal that is not specially processed or pressure welding.
Characteristics
1¡¢Reasonable installation structure design, wide general-purpose nature, can be used both G type and TH type guide rail. If it is above 50mm2, adopts fasten accessory installation.
2¡¢Small volume, complete set of specification, big connected conductorsectional area and good electrical conductivity, the one that is below 50mm2 adopts copper press line frame and copper fasten screw; and the one that is above 50mm2 adopts copper press line frame and steel screw and copper skirt plate. It has big tighten moment and self-locking function.

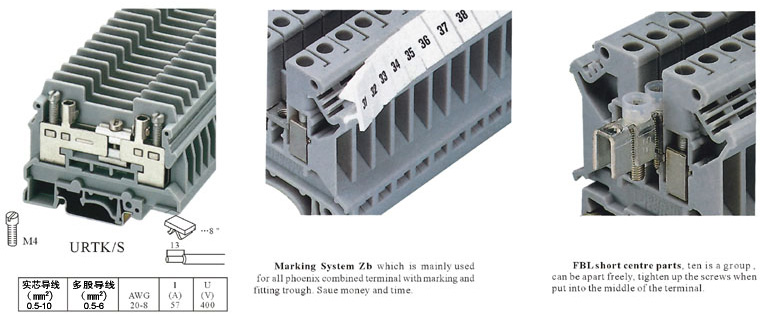

3¡¢The strong combined function makes the connection of conductor be simpler.

1)End cover£ºThickness 1.5mm2 grey
(2)10 Center connection-strips, can be divided into2position or 3position.
(3)Isolator bridge bar: 10-position, divisible need cushion block.
(4)Switch bar for 2 terminal blocks complete, add end cover between two teminals.
(5)Separating plate: be used for electrical separation of neighbouring brodges.
(6)Partition plate: 1.5mm Thickness
(7)Unviersal end fixed piece.

UK SERIES UNIVERSAL TERMINAL BLOCKS

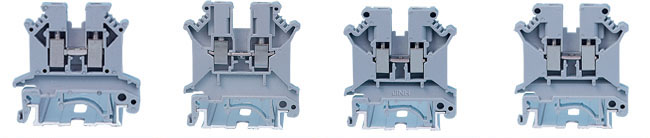

UK2.5B	UK3N	UK5N	UK6N
Ragidity leadmm2 Flexible lead	Ragidity leadmm2 Flexible lead	Ragidity leadmm2 Flexible lead	Ragidity leadmm2 Flexible lead
0.2-4 0.2-2.5	0.2-4 0.2-2.5	0.2-10 0.2-6	0.2-6 0.2-4
Current:32A  Voltage::690V	Current:32A  Voltage:800V	Current:41A  Voltage:800V	Current:57A  Voltage:800V
D-UK2.5 D-UK2.5	D-UK4/10 D-UK4/10	D-UK4/10 D-UK4/10	D-UK4/10 D-UK4/10
FB1 10-6 FB1 10-6		FB1 10-6 FB1 10-6	FB1 10-5 FB1 10-5
ISSBI10-6 IS-K4 ISSBI106 (IS-K4)		ISSBI10-6 IS-K4 ISSBI10-6 (IS-K4)	ISSBI10-8 IS-K10 ISSBI10-8 (IS-K10)
USBE2-7 TS-K ISSBI10-6 (IS-K4)		USBE2-7 USBE2-7	UR 2-8/13 UR2-8/13
TS-K (IS-K4)	TS-K ( TS-K)	TS-K (TS-K )	TS-K (TS-K )
ATP-UK (ATP-UK)	ATP-UK (ATP-UK)	ATP-UK (ATP-UK)	ATP-UK (ATP-UK)
E/UK (E/UK)	E/UK ( E/UK)	E/UK ( E/UK)	E/UK ( E/UK)

UK10N	UK16N	UIK35	UK35
Ragidity leadmm2 Flexible lead	Ragidity leadmm2 Flexible lead	Ragidity leadmm2 Flexible lead	Ragidity leadmm2 Flexible lead
0.5-16 0.5-10	2.5-25 4-16	10-35 10-35	10-35 0.2-6
Current:76A  Voltage:800V	Current:101A  Voltage:800V	Current:125A  Voltage:800V	Current:125A  Voltage:800V
D-UK4/10 D-UK4/10	D-UK16 (D-UK16)	FB12-15 FB13-15 (FB12-15) (FB13-15)
FB1 10-10 FB1 10-10	FB1 10-12 FB1 10-12		FB12-15 FB13-15 (FB1-6)
ISSBI10-10 ISS-K10 ISSBI1010 (ISS-K10)
TS-K (TS-K )	TS-K ( TS-K)	TS-K (TS-K )	TS-K (TS-K )
ATP-UK (ATP-UK)	ATP-UK (ATP-UK)	Sealed cover	sealed cover
E/UK ( E/UK)	E/UK ( E/UK)	E/UK ( E/UK)	E/UK ( E/UK)

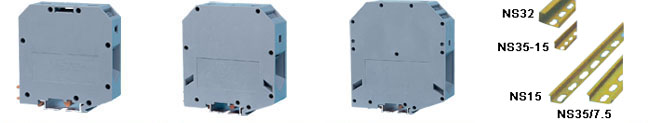

UKH50	UK95	UK150
rigidity wire mm2 Flexible lead	Ragidity leadmm2 Flexible lead	Ragidity leadmm2 Flexible lead	NS15 NS32
16-50 25-50	25-95 35-95	35-150 50-150	NS35/7.5 NS35/15
Current:150A  Voltage:1000V	Current:232A  Voltage:1000V	Current:309A  Voltage:1000V
FB1 12-20 FB13-20 FB1 12-20 (FB13-20)
