| Electrical Items >> Fuse >> NT Low Voltage H.R.C. Fuse(Fuse-Link) 　

NT Low voltage H.R.C.Fuse(Fuse-Links)
    Type NT Low voltage H.R.C.Fuse is one of our new products designed with reference to overseas advanced technology. Being light in weight,small in size,low in power-loss and high in breaking capacity,this product has been widely used in over-load and short-circuit protection of electric installations.
This product conforms with IEC 269 and GB 13539 standards,with all of the ratings at the world advanced level.
No
Type
Rated Current
(A)
Rated Voltage(V)
Rated Power
(W)
Weight
(kg)
00101
NT00C
RT16-00C
NH00C
4
6
10
16
20
25
32
40
50
63
80
100

500
660
0.67
0.89
1.14
1.65
1.95
2.50
3.32
3.56
4.30
4.50
4.60
6.00
7.30
0.12
00102
NT00
RT16-00
NH00
4
6
10
16
20
25
32
40
50
63
80
100
125
160
500
660
0.67
0.89
1.14
1.65
1.95
2.50
3.32
3.56
4.30
4.50
4.60
6.00
7.30
7.80
9.60
0.16
00103
NT0
RT16-0
NH0
4
6
10
16
20
25
32
40
50
63
80
100
125
160
500
660
1.03
1.42
2.45
2.36
2.70
3.74
4.30
4.70
5.50
6.90
7.60
8.90
10.10
15.20
0.23
00104
NT1
RT16-1
NH01
80
100
125
160
200
224
250
500
660
1.20
2.25
10.20
13.00
15.20
16.80
18.30
0.66
00105
NT2
RT16-2
NH02
125
160
200
250
300
315
355
400
500
660
9.00
11.5
15.0
16.0
18.4
21.0
19.2
24.5
26.0


0.85











NT Low voltage H.R.C.Fuse(Fuse-Links)
Main Technical Data:This product conforms with IEC 269 and GB13539 standards.
No
Type
Rated Current
(A)
Rated Voltage(V)
Rated Power
(W)
Weight
(kg)
00106
NT3
RT16-3
NH03
315
355
400
425
500
630
500
660
21.70
22.70
26.80
28.90
32.00
40.30
0.85
00107
NT4
RT17
NH04
800
1000
500
660
62.00
75.00
2.04

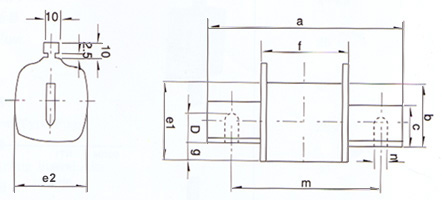

Fuse Link Dimensions

Type
Dimensions (mm)
a
b
c
e1
e2
i
f
g
m
n
o
NT00C
78.5
35
15
41
20
6
49
7.5
NT00
78.5
35
15
45
29
6
49
11.5
NT0
125
35
15
45
29
6
68
11.5
NT1
135
40
21
48
48
6
68
12
NT2
150
48
27
58
58
6
68
13
NT3
150
60
33
67
67
6
68
14
NT4
200
83
50
96
88
8
68
20
150
16
32
