Electrical Items >> Fuse >> RT19 Series Cylinder Cap Fuse ¡¡

RT19 Series Cylinder Cap Fuse



Scope of application

It is applicable designed for protecting electrical distrbuting installations of AC50Hz(or 60Hz), rated voltge of 400V A.C. with rated currents up to 125A against damage due to overloads or short-cricuit currents. Fuse-links with the striker are supplied for the purpose of protecting motors against motor single phasing operation when fitted in fus esi olators.

Type and meaning

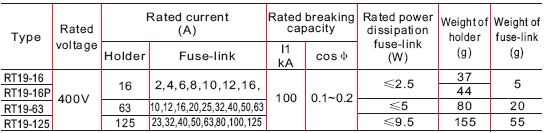

Main technical parameter

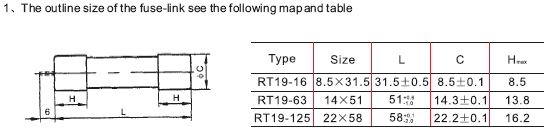

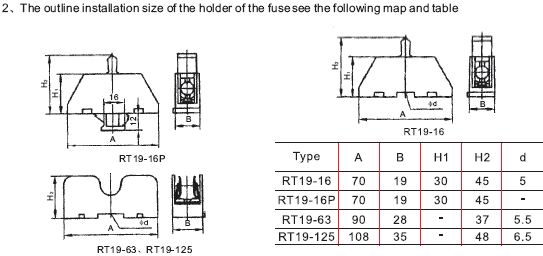

Outline and installation size
