Photocell Control PH-104

Rated Voltage:	120V¡«.220V¡«(Applicable 110V.127V.230V.240V)
Rated Frequency:	50/60Hz
Rated Current:	3A,10A
Light Level:	ON:<20Lux ¡¡¡¡OFF:<80Lux
Acting Time:	ON:<2¡ä¡¡¡¡OFF:<2¡ä
Electrical Life:	>6500Circles

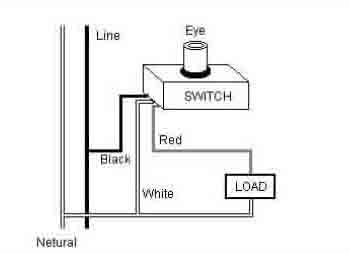

Installation The controller works according to the scene illumination. 1.It can not be illuminated by the simulative light of 50lux or more. 2.It can not be installed in the shadow of 20lux or less (daytime). 3.The wire of the controller cannot be mis-connected (red wire/load,white wire/controlling wire,black wire/neutral wire).
