Features: 1. Constant voltage mode power supply 2.Epoxy encapsulated with IP67 level 3.Withstand 300VAC surge input for 5 seconds 4.Protections: Short circuit / Over current / Over voltage 5.Fully isolated aluminum alloy case 6.Cooling by free air convection 7.100% full load burn-in test 8.Low cost, high reliability 9.Suitable for LED lighting and moving sign applications
Model Specification	LPV-12-12	LPV-12-15	LPV-12-24
DC output voltage	12V	15V	24V
Output voltage error	¡À5%	¡À5%	¡À5%
Rated output current	1.0A	0.8A	0.5A
Output current rage	0-1.0A	0-0.8A	0-0.5A
Wave and noise	100mVp-p	100mVp-p	150mVp-p
Efficiency	77%	78%	80%
AC input voltage range	170-264VAC (or 90-132VAC) 47~63Hz
Input current	0.1A/230A
AC Inrush current	Cold-start current 30A/230V
Leakage current	<0.5mA/240VAC
Overload protection	115%-135% hiccup mode:auto recovery
over temperature	>105¡æ hiccup mode:auto recovery
waterproof rank	IP67
Setup rise hold up time	200ms,100ms,30ms
Withstand voltage	I/P-OP:3kvAC 1minute I/P-FG:1.5KvAC 1minute O/P-FG:0.5KvAC 1minute
Working temperature and humidity	0~40¡æ@100%put 0~10¡æ@80%put 50¡æ@60%put
Overall dimension	132¡Á29¡Á20mm
Weight	0.15kg
Application	LED lamp,LED Strip light,LED neon flex light,LED lighting system

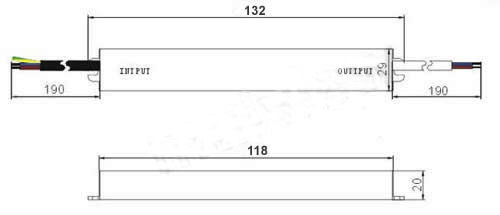

12W LED Power Driver shape and dimension
