Features
![]() Universal AC input/ full range
![]() Protections: Short circuit/ Over load/ Over voltage
![]() Cooling by free air convection
![]() Can be installed on DIN rail TS-35/7.5 or 15
![]() Isolation class¢ò
![]() LED indicator for power on
![]() 100% full load burn-in test
![]() 3 years warranty
![]() Dimensions: 78*93*56mm (W*H*D) |

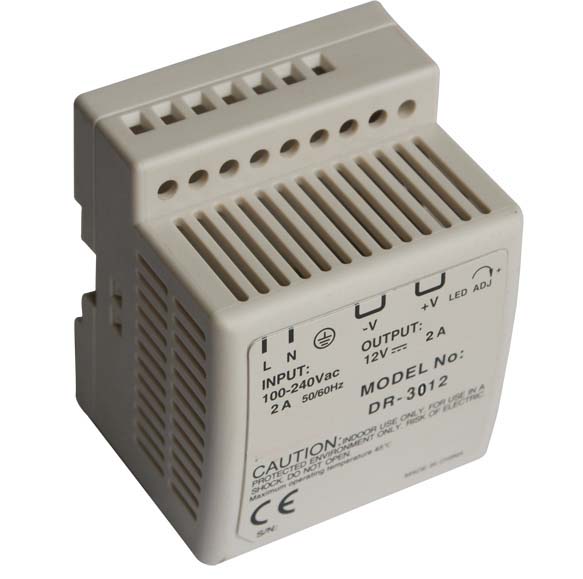

 | DR-30 Din-Rail Power Supply | |
|
Model |
DR-30-5 |
DR-30-12 |
DR-30-15 |
DR-30-24 |
|
DC Voltage |
5V |
12V |
15V |
24V |
|
Voltage Tolerance |
¡À2% |
¡À1% |
¡À1% |
¡À1% |
|
Rated Current |
3A |
2A |
2A |
1.5A |
|
Current Range |
0-3A |
0-2A |
0-2A |
0-1.5A |
|
Rated Power |
15W |
24W |
30W |
36W |
|
Ripple & Noise |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
DC Adjustment Range |
-5%,+10% |
¡À10% |
¡À10% |
¡À10% |
|
Setup, Rise, Hold Time |
100ms,30ms/230VAC100ms,30ms/115VAC at full load | |
| INPUT |
|
| Voltage Range |
85¡«264 VAC47¡«63 Hz£» selected by switch 120¡«370VDC |
| AC Current |
0.88 A/115 V 0.48A/ 230 V |
| Efficiency |
74%(HDR-30-5); 81%(HDR-30-12); 82%(HDR-30-15); 83%(HDR-30-24) |
| Inrush Current |
Cold start 15A/115V 30A/230V |
| PROTECTION |
|
| Over Load |
105%¡«160% |
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Over Voltage |
115%~135% |
|
Protection type: Shut down o/p voltage, re-power on to recover |
| ENVIRONMENT |
|
| Working Temp., Humidity |
-10¡æ¡«+60¡æ£»20%¡«90 %RH |
| Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH |
| Vibration |
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
| SAFETY |
|
| Withstand Voltage |
I/P-O/P: 3KVAC |
| Isolation Resistance |
I/P-O/P: 100M Ohms / 500VDC |
| STANDARD |
|
| Safety Standard |
Design refer to UL60950-1,TUV EN60950-1,EN50178 |
| EMC Standard |
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3 |
| OTHERS |
|
| Weight |
0.27Kg |
| Packing |
48pcs/14Kg/1.02CUFT |
| NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |
|
