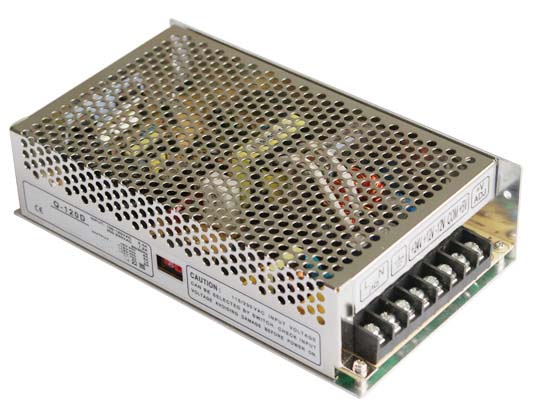

Q-120-D Quadri Output Switching Power Supply
|
type |
Q-120-B |
|
DC VOLTAGE |
5V |
12V |
24V |
-12V |
|
VOLTAGE TOLERANCE |
±2% |
±6% |
±6% |
±6% |
|
RATED CURRENT |
8A |
2A |
2A |
1A |
|
CURRENT RANGE |
2-12A |
0.2-5A |
0.2-2A |
0.2-1A |
|
RIPPLE&NOISE(MAX.) |
80mVp-p |
120mVp-p |
180mVp-p |
120mVp-p |
|
LINE REGULATION |
±0.5% |
±1% |
±0.5% |
±0.5% |
|
LOAD REGULATION |
±0.5% |
±4% |
±1% |
±1% |
|
RATED POWER |
120W |
|
EFFICIENCY(Typ.) |
80% |
|
VOLTAGE ADJ.RANGE |
CH1:+10,-5% |
|
VOLTAGE RANGE |
85～264VAC 47-63Hz;120-370VDC |
|
AC CURRENT |
3A/115V 1.25A/230V |
|
INRUSH CURRENT(MAX.) |
cold inrushed current 30A/115V, 60A/230V |
|
LEAKAGE CURRENT |
<3.5mA/240VAC |
|
OVERLOAD PROTECTION |
105%-150% hiccup type：output：auto recovery |
|
OVERVOLTAGE PROTECTION |
CH1:5.75-6.75 |
|
OVERTEMPERATURE PROTECTION |
...................... |
|
TEMP.COEFFICIENT |
±0.03%/℃(0～50℃) |
|
SETUP.RISE,HOLD TIME |
1.6s,20ms,12ms/115VAC ,200ms,20ms,50ms/230VAC |
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC |
|
ISOLATED RESISTOR |
I/P-O/P,I/P-FG,O/P-FG:500VDC/100MΩ |
|
WORKING TEMP.HUMIDITY |
-10℃～+60℃,20%～90RH |
|
STORAGE TEMP.HUMIDITY |
-20℃～+85℃,20%～95%RH |
|
DIMENSION |
159×97×38mm |
|
WEIGHT |
0.55Kgs |
|
SAFETY STANDARDS |
UL1950 |
|
EMC |
CISPR22(55022),IEC801--2,3,4,IEC555-2 |
Note：
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature. 2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation:min&max voltage of the rated load.
5.load regulation:load from 0 to 100%.
|
