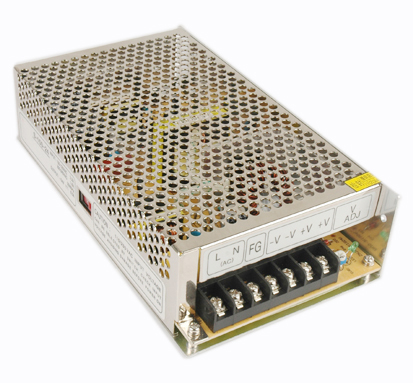

T-100 Triple Output Switching Power Supply

Feature: High efficiency, high reliability Universal AC input / full range 100% full load burn-in test Short circuit / overload / over-voltage protection Cooling by free air convection 2 years warranty Dimension: 199*110*50mm Triple output, high precision voltage Case No.：H005

MODEL T-100-C T-100-D CH1 CH2 CH3 CH1 CH2 CH3 OUTPUT DC VOLTAGE 5V 15V -15V 5V 12V -24V VOLTAGE TOLERANCE ±2% ±6% ±6% ±2% ±6% ±6% RATED CURRENT 10A 2.5A 1A 6A 2A 2A CURRENTRANGE 2-12A 0.2-2.5A 0.1-1A 2-12A 0.1-2A 0.2-2A RATED POWER 100W 102W RIPPLE &NOISE(MAX) 80mVp-p 150mVp-p 150mVp-p 80mVp-p 150mVp-p 150mVp-p DC VOLTAGEFRE QUENCY RANGE CH1：+10,-5% SETUP,RISE,HOLD TIME 200ms,500ms,16ms INPUT VOLTAGERANGE 85～132 VAC/170～264VACselected by switch 47～63 Hz；240～370VDC AC CURRENT 2.5A/115 V1.25A/ 230 V EFFICIENCY 77% 79% INRUSH CURRENT Cold start30A/115V60A/230V LEAKAGE CURRENT ＜0.5mA/240VAC PROTECTION OVERLOAD PROTECTION 105%～150% Shut down O/P voltage, re-power on to recover OVER-VOLTAGE PROTECTION 。。。 HIGH TEMPERATURE PROTECTON 。。。 ENVIRONMENT WORKING TEMP.& HUMIDITY -10℃～+60℃；20%～90 %RH STORAGE TEMP.& HUMIDITY -20℃～+85℃；10%～95 %RH VIBRATION 10～500Hz，2G 10min./1cycle, period for 60min, each along X.Y.Z axes SAFETY WITHSTAND VOLTAGE I/P-O/P：3KVACI/P-FG：1.5KVACO/P-FG：0.5KVAC ISOLATION RESISTANGE I/P-O/P, I/P-FG, O/P-FG：500VDC/100MΩ STANDARDS SAFETY STANDARDS Design refer to UL1012 EMC STANDARDS Design refer to FCC PART15 J CONDUCTION CLASS B OTHERS WEIGHT 0.86Kg PACKING 16pcs/14.7Kg/0.95CUFT NOTE All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temp. 70% RH. Tolerance: Includes set up tolerance, line regulation and load regulation. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire teminated with a 0.1μf & 47μf parallel capacitor. 进线电压稳定度测试：满负载时进线最低电压到最高电压. 负载稳定度测试：负载从0%至100%,其他Output为60%额定负载. All output can achieve the max. current, but full load can not exceed the max. output power.
