| INDEX TYPE |
T-30-A |
T-30-B |
| DC VOLTAGE |
5V |
12V |
-5V |
5V |
12V |
-12V |
| VOLTAGE ADJ.RANGE |
+10%--5% |
|
|
+10%--5% |
|
|
| VOLTAGE TOLERANCE |
±2% |
+2%-6% |
+2%-10% |
±2% |
+2%-6% |
±6% |
| RATED CURRENT |
3A |
1A |
0.5A |
3A |
1A |
0.5A |
| CURRENT RANGE |
0.5-3A |
0.1-1A |
0.1-0.5A |
0.5-3A |
0.1-1A |
0.1-0.5A |
| RATED POWER |
30W |
33W |
| EFFICIENCY(Typ.) |
70% |
72% |
| RIPPLE&NOISE(MAX.) |
50mvp-p |
100mvp-p |
50mvp-p |
50mvp-p |
100mvp-p |
100mvp-p |
| LINE REGULATION |
±0.5% |
±1% |
±1% |
±0.5% |
±1% |
±1% |
| LOAD REGULATION |
±0.5% |
±5% |
±5% |
±0.5% |
±5% |
±5% |
| VOLTAGE RANGE |
85-132VAC/170-264VAC 47-63Hz 240-370VDC |
| AC CURRENT |
0.8A/115V 0.45A/230V |
| INRUSH CURRENT(MAX.) |
cole inrushed current18A/115V 36A/230V |
| LEAKAGE CURRENT |
<1mA/240V |
| OVERLOAD PROTECTION |
105-150% type ：current limitation auto recovery |
| OVERVOLTAGE PROTECTION |
|
| OVERTEMPERATURE PROTECTION |
-- |
| TEMP.COEFFICIENT |
±0.03%/℃(0-50℃) |
| SETUP.RISE,HOLD TIME |
200ms 100ms 300ms /230V |
| WITHSTAND VOLTAGE |
I/P-O/P:3KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC |
| ISOLATED RESISTOR |
I/P-O/P,I/P-FG,O/P-FG:500VDC/100MΩ |
| STORAGE TEMP.HUMIDITY |
0-50℃@100%,-10℃@80%,60℃@60%,20%-90%RH |
| WEIGHT |
0.45Kg |
| SAFETY STANDARDS |
UL1012 |
| EMC |
FCC part15.conduction |
Note：
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation:min&max voltage of the rated load.

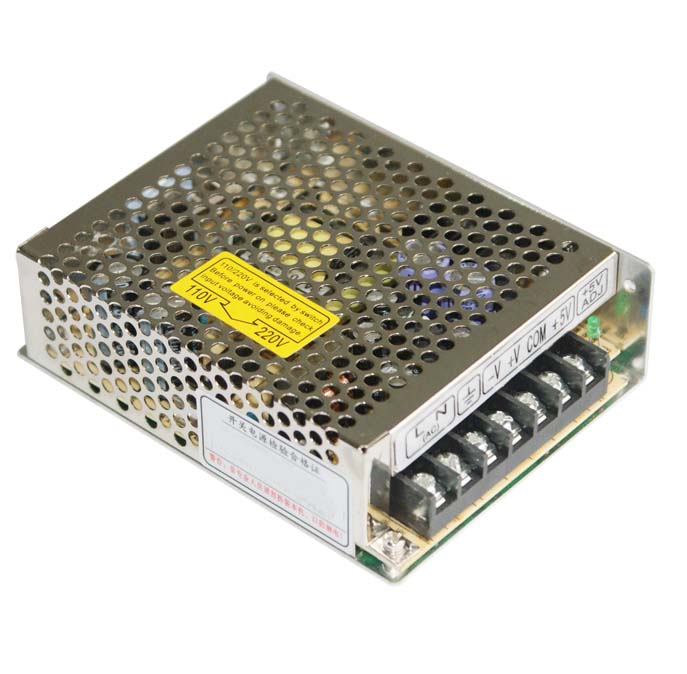

5.load regulation:load from 0 to 100%. | T-30 Triple Output Switching Power Supply
| INDEX TYPE |
T-30U1 |
T-30U2 |
| DC VOLTAGE |
5V |
12V |
-5V |
5V |
12V |
-12V |
| VOLTAGE ADJ.RANGE |
+10%--5% |
|
|
+10%--5% |
|
|
| VOLTAGE TOLERANCE |
±2% |
+2%-6% |
+2%-10% |
±2% |
+2%-6% |
±6% |
| RATED CURRENT |
3A |
1A |
0.5A |
3A |
1A |
0.5A |
| CURRENT RANGE |
0.5-3A |
0.1-1A |
0.1-0.5A |
0.5-3A |
0.1-1A |
0.1-0.5A |
| RATED POWER |
29.5W |
33W |
| EFFICIENCY(Typ.) |
70% |
72% |
| RIPPLE&NOISE(MAX.) |
50mvp-p |
100mvp-p |
50mvp-p |
50mvp-p |
100mvp-p |
100mvp-p |
| LINE REGULATION |
±0.5% |
±1% |
±1% |
±0.5% |
±1% |
±1% |
| LOAD REGULATION |
±0.5% |
±5% |
±5% |
±0.5% |
±5% |
±5% |
| VOLTAGE RANGE |
85-132VAC/170-264VAC 47-63Hz 240-370VDC |
| AC CURRENT |
0.8A/115V 0.45A/230V |
| INRUSH CURRENT(MAX.) |
cole inrushed current18A/115V 36A/230V |
| LEAKAGE CURRENT |
<1mA/240V |
| OVERLOAD PROTECTION |
105-150% type ：current limitation auto recovery |
| OVERVOLTAGE PROTECTION |
|
| OVERTEMPERATURE PROTECTION |
-- |
| TEMP.COEFFICIENT |
±0.03%/℃(0-50℃) |
| SETUP.RISE,HOLD TIME |
200ms 100ms 300ms /230V |
| WITHSTAND VOLTAGE |
I/P-O/P:3KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC |
| ISOLATED RESISTOR |
I/P-O/P,I/P-FG,O/P-FG:500VDC/100MΩ |
| STORAGE TEMP.HUMIDITY |
0-50℃@100%,-10℃@80%,60℃@60%,20%-90%RH |
| WEIGHT |
0.45Kg |
| SAFETY STANDARDS |
UL1012 |
| EMC |
FCC part15.conduction |
Note：
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation:min&max voltage of the rated load.
5.load regulation:load from 0 to 100%. |
|
INDEX TYPE |
T-30U1 |
T-30U2 |
|
DC VOLTAGE |
5V |
12V |
-5V |
5V |
12V |
-12V |
|
VOLTAGE ADJ.RANGE |
+10%--5% |
|
|
+10%--5% |
|
|
|
VOLTAGE TOLERANCE |
±2% |
+2%-6% |
+2%-10% |
±2% |
+2%-6% |
±6% |
|
RATED CURRENT |
3A |
1A |
0.5A |
3A |
1A |
0.5A |
|
CURRENT RANGE |
0.5-3A |
0.1-1A |
0.1-0.5A |
0.5-3A |
0.1-1A |
0.1-0.5A |
|
RATED POWER |
29.5W |
33W |
|
EFFICIENCY(Typ.) |
70% |
72% |
|
RIPPLE&NOISE(MAX.) |
50mvp-p |
100mvp-p |
50mvp-p |
50mvp-p |
100mvp-p |
100mvp-p |
|
LINE REGULATION |
±0.5% |
±1% |
±1% |
±0.5% |
±1% |
±1% |
|
LOAD REGULATION |
±0.5% |
±5% |
±5% |
±0.5% |
±5% |
±5% |
|
VOLTAGE RANGE |
85-132VAC/170-264VAC 47-63Hz 240-370VDC |
|
AC CURRENT |
0.8A/115V 0.45A/230V |
|
INRUSH CURRENT(MAX.) |
cole inrushed current18A/115V 36A/230V |
|
LEAKAGE CURRENT |
<1mA/240V |
|
OVERLOAD PROTECTION |
105-150% type ：current limitation auto recovery |
|
OVERVOLTAGE PROTECTION |
|
|
OVERTEMPERATURE PROTECTION |
-- |
|
TEMP.COEFFICIENT |
±0.03%/℃(0-50℃) |
|
SETUP.RISE,HOLD TIME |
200ms 100ms 300ms /230V |
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC |
|
ISOLATED RESISTOR |
I/P-O/P,I/P-FG,O/P-FG:500VDC/100MΩ |
|
STORAGE TEMP.HUMIDITY |
0-50℃@100%,-10℃@80%,60℃@60%,20%-90%RH |
|
WEIGHT |
0.45Kg |
|
SAFETY STANDARDS |
UL1012 |
|
EMC |
FCC part15.conduction |
|
Note：
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation:min&max voltage of the rated load.
5.load regulation:load from 0 to 100%. |
|
