EI42/20-8.0VA Encapsulated Transformer
Vacuum Filled
Split Bobbin Design
Temperature Class ta 70¡æ/B
Dielectric Strength 4500Vrms
Weight£º260 grams
¡¡Accrding to£º

¡¡EI42/20-8.0VA

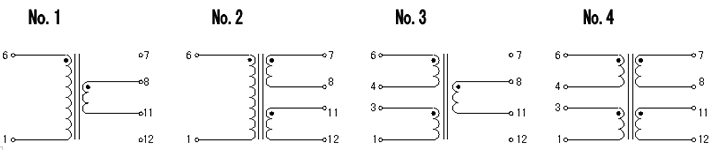

PART NO Primary[V] Secondary[V] Current[mA] Pin No-Load Voltage[V] Schematic No
EI4214-U2-0500-120-D 2*115v~ 2¡Á12 2¡Á208.0 1+3-4+6/7+8-11+12 2¡Á15.5 4
EI4214-U2-0500-150-D 2*115v~ 2¡Á15 2¡Á167.0 1+3-4+6/7+8-11+12 2¡Á19.5 4
EI4214-U2-0500-180-D 2*115v~ 2¡Á18 2¡Á139.0 1+3-4+6/7+8-11+12 2¡Á23.5 4
EI4220-E-0800-060-S 230v~ 6 1333.0 1+6/8+11 7.6 1
EI4220-E-0800-090-S 230v~ 9 888.0 1+6/8+11 11.5 1
EI4220-E-0800-120-S 230v~ 12 666.0 1+6/8+11 15.5 1
EI4220-E-0800-150-S 230v~ 15 533.0 1+6/8+11 19.0 1
EI4220-E-0800-180-S 230v~ 18 444.0 1+6/8+11 22.8 1
EI4220-E-0800-240-S 230v~ 24 333.0 1+6/8+11 30.0 1
EI4220-E-0800-060-D 230v~ 2¡Á6 2¡Á666.0 1+6/7+8-11+12 2¡Á8.0 2
EI4220-E-0800-075-D 230v~ 2¡Á7.5 2¡Á533.0 1+6/7+8-11+12 2¡Á10.0 2
EI4220-E-0800-090-D 230v~ 2¡Á9 2¡Á444.0 1+6/7+8-11+12 2¡Á11.5 2
EI4220-E-0800-120-D 230v~ 2¡Á12 2¡Á333.0 1+6/7+8-11+12 2¡Á15.5 2
EI4220-E-0800-150-D 230v~ 2¡Á15 2¡Á266.0 1+6/7+8-11+12 2¡Á19.0 2
EI4220-E-0800-180-D 230v~ 2¡Á18 2¡Á222.0 1+6/7+8-11+12 2¡Á22.8 2
EI4220-E-0800-240-D 230v~ 2¡Á24 2¡Á166.0 1+6/7+8-11+12 2¡Á30.0 2
EI4220-U-0800-060-S 115v~ 6 1333.0 1+6/8+11 7.6 1
EI4220-U-0800-090-S 115v~ 9 888.0 1+6/8+11 11.5 1
EI4220-U-0800-120-S 115v~ 12 666.0 1+6/8+11 15.5 1
EI4220-U-0800-150-S 115v~ 15 533.0 1+6/8+11 19.0 1
EI4220-U-0800-180-S 115v~ 18 444.0 1+6/8+11 22.8 1
EI4220-U-0800-240-S 115v~ 24 333.0 1+6/8+11 30.0 1
EI4220-U-0800-060-D 115v~ 2¡Á6 2¡Á666.0 1+6/7+8-11+12 2¡Á8.0 2
EI4220-U-0800-075-D 115v~ 2¡Á7.5 2¡Á533.0 1+6/7+8-11+12 2¡Á10.0 2
EI4220-U-0800-090-D 115v~ 2¡Á9 2¡Á444.0 1+6/7+8-11+12 2¡Á11.5 2
EI4220-U-0800-120-D 115v~ 2¡Á12 2¡Á333.0 1+6/7+8-11+12 2¡Á15.5 2
EI4220-U-0800-150-D 115v~ 2¡Á15 2¡Á266.0 1+6/7+8-11+12 2¡Á19.0 2
EI4220-U-0800-180-D 115v~ 2¡Á18 2¡Á222.0 1+6/7+8-11+12 2¡Á22.8 2
EI4220-U-0800-240-D 115v~ 2¡Á24 2¡Á166.0 1+6/7+8-11+12 2¡Á30.0 2
EI4220-U2-0800-060-S 2*115v~ 6 1333.0 1+3-4+6/8+11 7.6 3
EI4220-U2-0800-090-S 2*115v~ 9 888.0 1+3-4+6/8+11 11.5 3
EI4220-U2-0800-120-S 2*115v~ 12 666.0 1+3-4+6/8+11 15.5 3
EI4220-U2-0800-150-S 2*115v~ 15 533.0 1+3-4+6/8+11 19.0 3
EI4220-U2-0800-180-S 2*115v~ 18 444.0 1+3-4+6/8+11 22.8 3
EI4220-U2-0800-240-S 2*115v~ 24 333.0 1+3-4+6/8+11 30.0 3
EI4220-U2-0800-060-D 2*115v~ 2¡Á6 2¡Á666.0 1+3-4+6/7+8-11+12 2¡Á8.0 4
EI4220-U2-0800-090-D 2*115v~ 2¡Á9 2¡Á444.0 1+3-4+6/7+8-11+12 2¡Á11.5 4
EI4220-U2-0800-120-D 2*115v~ 2¡Á12 2¡Á333.0 1+3-4+6/7+8-11+12 2¡Á15.5 4
EI4220-U2-0800-150-D 2*115v~ 2¡Á15 2¡Á266.0 1+3-4+6/7+8-11+12 2¡Á19.0 4
EI4220-U2-0800-180-D 2*115v~ 2¡Á18 2¡Á222.0 1+3-4+6/7+8-11+12 2¡Á22.8 4
EI4220-U2-0800-240-D 2*115v~ 2¡Á24 2¡Á116.0 1+3-4+6/7+8-11+12 2¡Á30.0 4
