EI30/15.5-2.0VA Encapsulated Transformer
Safety transformer/Short-circuit-proof
Vacuum Filled
Split Bobbin Design
Temperature Class ta 70¡æ/B
Dielectric Strength 4500Vrms
Weight£º100 grams
¡¡Accrding to£º

¡¡EI30/15.5-2.0VA

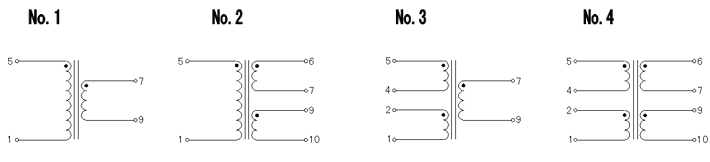

PART NO Primary[V] Secondary[V] Current[mA] Pin No-Load Voltage[V] Schematic No
EI3015-E-0200-060-S 230v~ 6 333.0 1+5/7+9 10.5 1
EI3015-E-0200-090-S 230v~ 9 222.0 1+5/7+9 15.0 1
EI3015-E-0200-120-S 230v~ 12 166.0 1+5/7+9 20.0 1
EI3015-E-0200-150-S 230v~ 15 133.0 1+5/7+9 26.0 1
EI3015-E-0200-180-S 230v~ 18 111.0 1+5/7+9 30.0 1
EI3015-E-0200-240-S 230v~ 24 83.0 1+5/7+9 38.0 1
EI3015-E-0200-060-D 230v~ 2¡Á6 2¡Á166.0 1+5/6+7-9+10 2¡Á10.5 2
EI3015-E-0200-075-D 230v~ 2¡Á7.5 2¡Á133.0 1+5/6+7-9+10 2¡Á13.0 2
EI3015-E-0200-090-D 230v~ 2¡Á9 2¡Á111.0 1+5/6+7-9+10 2¡Á15.0 2
EI3015-E-0200-120-D 230v~ 2¡Á12 2¡Á83.0 1+5/6+7-9+10 2¡Á20.0 2
EI3015-E-0200-150-D 230v~ 2¡Á15 2¡Á66.0 1+5/6+7-9+10 2¡Á24.5 2
EI3015-E-0200-180-D 230v~ 2¡Á18 2¡Á55.0 1+5/6+7-9+10 2¡Á29.5 2
EI3015-E-0200-240-D 230v~ 2¡Á24 2¡Á42.0 1+5/6+7-9+10 2¡Á36.5 2
EI3015-U-0200-060-S 115v~ 6 333.0 1+5/7+9 10.5 1
EI3015-U-0200-090-S 115v~ 9 222.0 1+5/7+9 15.0 1
EI3015-U-0200-120-S 115v~ 12 166.0 1+5/7+9 20.0 1
EI3015-U-0200-150-S 115v~ 15 133.0 1+5/7+9 26.0 1
EI3015-U-0200-180-S 115v~ 18 111.0 1+5/7+9 30.0 1
EI3015-U-0200-240-S 115v~ 24 83.0 1+5/7+9 38.0 1
EI3015-U-0200-060-D 115v~ 2¡Á6 2¡Á166.0 1+5/6+7-9+10 2¡Á10.5 2
EI3015-U-0200-075-D 115v~ 2¡Á7.5 2¡Á133.0 1+5/6+7-9+10 2¡Á13.0 2
EI3015-U-0200-090-D 115v~ 2¡Á9 2¡Á111.0 1+5/6+7-9+10 2¡Á15.0 2
EI3015-U-0200-120-D 115v~ 2¡Á12 2¡Á83.0 1+5/6+7-9+10 2¡Á20.0 2
EI3015-U-0200-150-D 115v~ 2¡Á15 2¡Á66.0 1+5/6+7-9+10 2¡Á24.5 2
EI3015-U-0200-180-D 115v~ 2¡Á18 2¡Á55.0 1+5/6+7-9+10 2¡Á29.5 2
EI3015-U-0200-240-D 115v~ 2¡Á24 2¡Á42.0 1+5/6+7-9+10 2¡Á36.5 2
EI3015-U2-0200-060-S 2*115v~ 6 333.0 1+2-4+5/7+9 10.5 3
EI3015-U2-0200-090-S 2*115v~ 9 222.0 1+2-4+5/7+9 15.0 3
EI3015-U2-0200-120-S 2*115v~ 12 166.0 1+2-4+5/7+9 20.0 3
EI3015-U2-0200-150-S 2*115v~ 15 133.0 1+2-4+5/7+9 26.0 3
EI3015-U2-0200-180-S 2*115v~ 18 111.0 1+2-4+5/7+9 30.0 3
EI3015-U2-0200-240-S 2*115v~ 24 83.0 1+2-4+5/7+9 38.0 3
EI3015-U2-0200-060-D 2*115v~ 2¡Á6 2¡Á166.0 1+2-4+5/6+7-9+10 2¡Á10.5 4
EI3015-U2-0200-090-D 2*115v~ 2¡Á9 2¡Á111.0 1+2-4+5/6+7-9+10 2¡Á15.0 4
EI3015-U2-0200-150-D 2*115v~ 2¡Á15 2¡Á66.0 1+2-4+5/6+7-9+10 2¡Á24.5 4
EI3015-U2-0200-150-D 2*115v~ 2¡Á15 2¡Á66.0 1+2-4+5/6+7-9+10 2¡Á24.5 4
EI3015-U2-0200-180-D 2*115v~ 2¡Á18 2¡Á55.0 1+2-4+5/6+7-9+10 2¡Á29.5 4
EI3015-U2-0200-240-D 2*115v~ 2¡Á24 2¡Á42.0 1+2-4+5/6+7-9+10 2¡Á36.5 4
