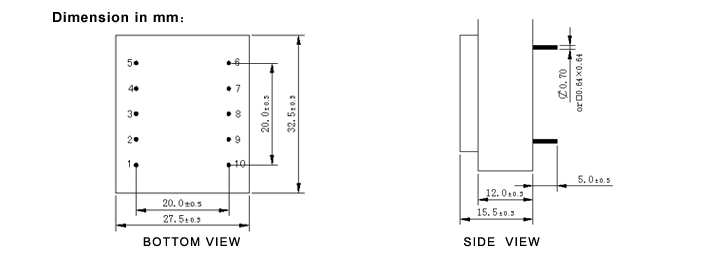

EI30/5-0.5VA Encapsulated Transformer
Safety transformer/Short-circuit-proof
Vacuum Filled
Split Bobbin Design
Temperature Class ta 70¡æ/B
Dielectric Stre,ngth 4500Vrms
Weight£º43 grams
¡¡Accrding to£º

¡¡EI30/5-0.5VA

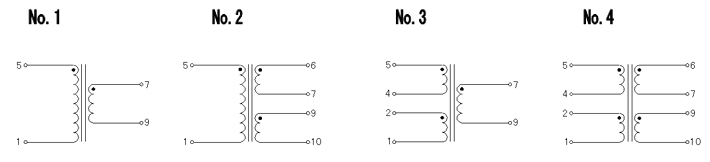

PART NO Primary[V] Secondary[V] Current[mA] Pin No-Load Voltage[V] Schematic No
EI3005-E-0050-060-S 230v~ 6 83.3 1+5/7+9 9.7 1
EI3005-E-0050-090-S 230v~ 9 55.5 1+5/7+9 14.1 1
EI3005-E-0050-120-S 230v~ 12 41.6 1+5/7+9 20.5 1
EI3005-E-0050-150-S 230v~ 15 33.3 1+5/7+9 24.6 1
EI3005-E-0050-180-S 230v~ 18 27.5 1+5/7+9 28.4 1
EI3005-E-0050-240-S 230v~ 24 20.8 1+5/7+9 37.0 1
EI3005-E-0050-060-D 230v~ 2¡Á6 2¡Á41.0 1+5/6+7-9+10 2¡Á10.0 2
EI3005-E-0050-075-D 230v~ 2¡Á7.5 2¡Á33.0 1+5/6+7-9+10 2¡Á12.3 2
EI3005-E-0050-090-D 230v~ 2¡Á9 2¡Á27.5 1+5/6+7-9+10 2¡Á15.6 2
EI3005-E-0050-120-D 230v~ 2¡Á12 2¡Á20.0 1+5/6+7-9+10 2¡Á19.9 2
EI3005-E-0050-150-D 230v~ 2¡Á15 2¡Á16.5 1+5/6+7-9+10 2¡Á23.3 2
EI3005-E-0050-180-D 230v~ 2¡Á18 2¡Á13.8 1+5/6+7-9+10 2¡Á27.9 2
EI3005-E-0050-240-D 230v~ 2¡Á24 2¡Á10.4 1+5/6+7-9+10 2¡Á37.2 2
EI3005-U-0050-060-S 1150v~ 6 83.3 1+5/7+9 9.7 1
EI3005-U-0050-090-S 115v~ 9 55.5 1+5/7+9 14.1 1
EI3005-U-0050-120-S 115v~ 12 41.6 1+5/7+9 20.5 1
EI3005-U-0050-150-S 115v~ 15 33.3 1+5/7+9 24.6 1
EI3005-U-0050-180-S 115v~ 18 27.5 1+5/7+9 28.4 1
EI3005-U-0050-240-S 115v~ 24 20.8 1+5/7+9 37.0 1
EI3005-U-0050-060-D 115v~ 2¡Á6 2¡Á41.0 1+5/6+7-9+10 2¡Á10.1 2
EI3005-U-0050-075-D 115v~ 2¡Á7.5 2¡Á33.0 1+5/6+7-9+10 2¡Á12.3 2
EI3005-U-0050-090-D 115v~ 2¡Á9 2¡Á27.5 1+5/6+7-9+10 2¡Á15.6 2
EI3005-U-0050-120-D 115v~ 2¡Á12 2¡Á20.0 1+5/6+7-9+10 2¡Á19.9 2
EI3005-U-0050-150-D 115v~ 2¡Á15 2¡Á16.5 1+5/6+7-9+10 2¡Á23.3 2
EI3005-U-0050-180-D 115v~ 2¡Á18 2¡Á13.8 1+5/6+7-9+10 2¡Á27.9 2
EI3005-U-0050-240-D 115v~ 2¡Á24 2¡Á10.4 1+5/6+7-9+10 2¡Á37.2 2
EI3005-U2-0050-060-S 2*115v~ 6 83.3 1+2-4+5/7+9 9.7 3
EI3005-U2-0050-090-S 2*115v~ 9 55.5 1+2-4+5/7+9 14.1 3
EI3005-U2-0050-120-S 2*115v~ 12 41.6 1+2-4+5/7+9 20.5 3
EI3005-U2-0050-150-S 2*115v~ 15 33.3 1+2-4+5/7+9 24.6 3
EI3005-U2-0050-180-S 2*115v~ 18 27.5 1+2-4+5/7+9 28.4 3
EI3005-U2-0050-240-S 2*115v~ 24 20.8 1+2-4+5/7+9 37.0 3
EI3005-U2-0050-060-D 2*115v~ 2¡Á6 2¡Á41.0 1+2-4+5/6+7-9+10 2¡Á10.1 4
EI3005-U2-0050-240-D 2*115v~ 2¡Á9 2¡Á27.5 1+2-4+5/6+7-9+10 2¡Á15.6 4
EI3005-U2-0050-120-D 2*115v~ 2¡Á12 2¡Á20.8 1+2-4+5/6+7-9+10 2¡Á19.9 4
EI3005-U2-0050-150-D 2*115v~ 2¡Á15 2¡Á16.5 1+2-4+5/6+7-9+10 2¡Á23.3 4
EI3005-U2-0050-180-D 2*115v~ 2¡Á18 2¡Á13.8 1+2-4+5/6+7-9+10 2¡Á27.9 4
EI3005-U2-0050-240-D 2*115v~ 2¡Á24 2¡Á10.4 1+2-4+5/6+7-9+10 2¡Á37.2 4
