3-35KV class Cast-resin indoor type voltage transformer

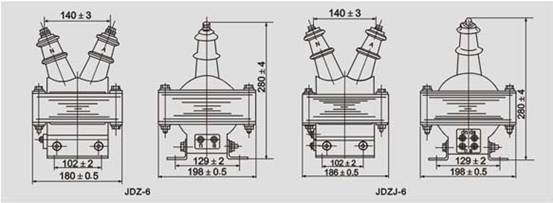

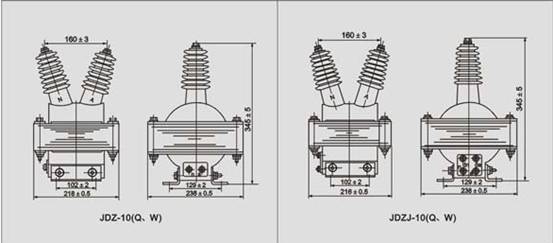

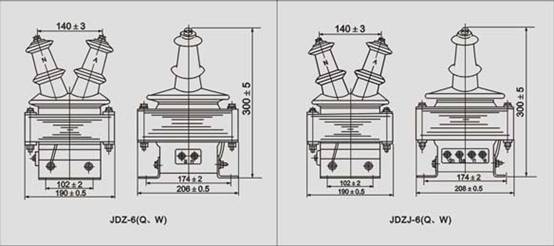

JDZ, JDZJ-6, 10 type voltage transformer

JDZ JDZJ-6 10 JDZ, JDZJ-6, 10 -     Type description

Rated voltage(KV) Earthing protection Cast-resin insulated Single-phase Voltage transformer

-     Technical date Type Rated transformation ratio(A) Accuracy class and rated output COSØ=0.8 Thermal limiting output(VA) Rated insulation level(kV) 0.2 0.5 1 3 3P 6P JDZ-6(Q) 3000/100 15 30 50 80 200 3.6/24/40 6000/100 20 50 80 200 400 7.2/32/60 JDZ-10(Q) 10000/100 30 80 120 300 500 12/42/75 10000/200 11000/100 JDZJ-6(Q)   15 30 50 80 100 200 3.6/24/40   20 50 80 200 100 400 7.2/32/60 JDZJ-10(Q)   20 50 80 200 100 400 12/42/75   Note: any special requirements can be negotiate with us.
