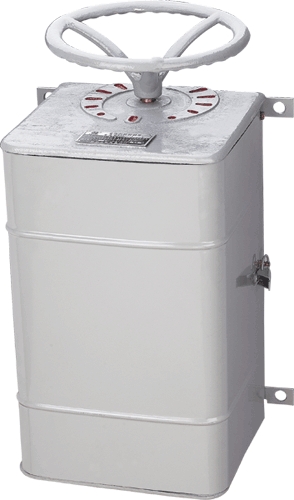

KT-100J, the 160J AC cam controller (is called controller),mainly uses in the hoisting equipment, controls 380 under to respectively consider the three phase ac induces the electrically operated machine starting, stops, the velocity modulation and the commutation. Also is suitable in having the same request in other electric drive equipments.

The main engineering data see Table 1

Note£º£¨1£©¡¢The limit minute breaks the ability refers to 1. 1UH, COS §¶ under =0.65 condition ability.
    £¨2£©¡¢The controller can control the electrical machinery power should break the ability according to the limit minute to designate.
    £¨3£©¡¢When the frequency of use surpasses the fixed operating frequency should reduce the capacity use (at present to fall temporarily to  60%)¡£

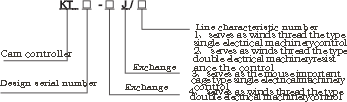

    £¨4£©¡¢Model explanation£º


    1¡¢This controller KT-100J/1, KT-100J, KT-100J, the 160J/5 wiring schematic diagram basically according to KTJ1-80/1, 2, 5 therefore replaces time does not need to change.

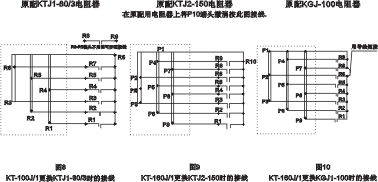

    2¡¢Replaces KTJ1-80/3 when with KT-100J/1, the controller and the resistor company aids according to chart 8 the wiring.
    3¡¢The KT-160J/1 controller wiring schematic diagram is but becomes according to KTJ-160/1 and the KTJ2-150 schematic diagram synthesis, when replaces KTJ1-150/1 with it according to the schematic diagram wiring may group of characteristics, therefore does not need to change bends.
   4¡¢Replaces when KTJ2-150 with KT-160J/1 a high-speed characteristic, also the controller and the resistor linked may according to chart 9 the wiring.
   5¡¢Replaces, KGJ1-100 when with KT-160J/1 (KT-3005), the wiring may maintain the original characteristic request completely according to chart 10. KGJ1-100 because is 8 positions therefore cannot choose 100 peaceful controllers according to the capacity but the elected KT-160J/1 controller.


    100 peaceful, 160 peaceful controllers structures are completely same,use the cold extrusion to refer to the shape copper contact, controls the line capacity and the use is different differently but (for details sees circuit diagram). When controller contact part for rotation type single break point structure, by cam rotation, the concave-convex change but causes the contact make and break. Various grade of positions localization by locates the release lever, locates the notch wheel and the retaining spring coordination realizes. The controller makes the protected type, has the steel plate shell, about the base makes for the cast iron, the product structure see

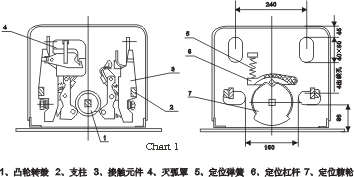

Figure 1:

1st, cam rotor drum. 2nd, the prop 3, contacts part 4, the extinguishing of arc covers 5, the retaining spring 6, locates release  lever 7, locates the notch wheel

form and build in

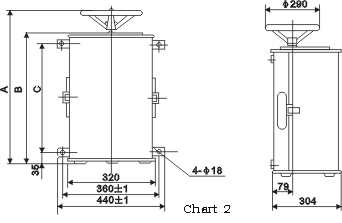

The controller external dimensions see Figure 2, table 2

   1¡¢The controller must reliably install on the bracket, does not have hanging to install, namely under the base must paste or the pad jail is solid, has four goings beyond a line holes its size on the controller under base to see Figure 1.

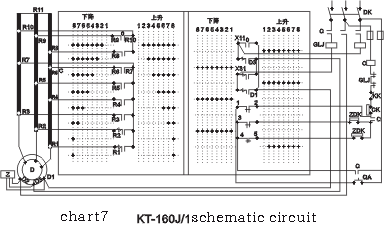

   2¡¢The controller various models basic wiring schematic diagram like attempts the 3~ chart 7.





• After the controller installment, should carry on the test run, the revolution is normal, only then puts into the use. Otherwise should verify the reason, fixes the breakdown to test a car again.
• The controller should the periodic inspection maintenance, eliminate on the contact after the commonly used file the melt spot. The contact under the guarantee contact pressure and the contact overtravel condition, contact thickness does not have to be smaller than 4 millimeters after the repair. (The contact pressure 1.8~2.5 kilogram, converts to the contact place overtravel 3~5 millimeter, opens is apart from the 8~13 millimeter).
• Cuts the resistance with to be loaded with the contact part which the extinguishing of arc covers, like the electric arc is not big in the use, may serve as the extinguishing of arc cover the power source
  contact the spare parts.
• Cuts the resistance with to be loaded with the contact part which the
  extinguishing of arc covers, like the electric arc is not big in the use, may serve as the extinguishing of arc cover the power source contact the spare parts.
• Electricity must maintain the enough pressure, by guards against the hyperpyrexia injury insulation, must pay attention to the rail coupling specially on the insulation base the junction pressure.
