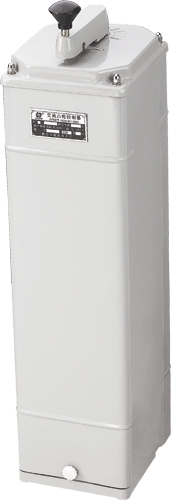

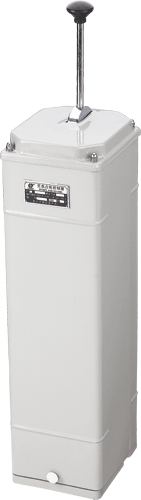

KTJ15 series AC cam controller
          USAGE
  1.     The KTJ15 series AC cam controller (hereafter refers to as controller) to be suitable in AC 50HZ, the voltage 380 under respectively considered in the power circuit, uses in changing the three-phase asynchronous motor stator electric circuit the connection or the rotor electric circuit resistance £¦#118alue, comes the positive governing electric motor the starting, the velocity modulation, to apply the brake or the commutation.

  2. sort and type

    1¡¢Classification: According to operating mode minute:
    A¡¢Level rotation operation:    B, the vertical reciprocation operate.

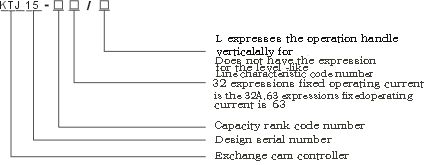

    2¡¢Model meaning:


  3. technical data

    1¡¢Handle operation strength: Is not bigger than 40N.
    2¡¢Most controls files position: About each six grades.
    3¡¢Most controls the way: 15.
    4¡¢The controller auxiliary contact group's electrical specificationconforms to the master controller technical specification.
    5¡¢The 32A controller may the positive governing 15 kilowatts and below and winds thread the type electric motor.
    6¡¢The 63A controller may the positive governing 30 kilowatts and below winds thread the type electric motor.
    7¡¢The mechanical life is not lower than 3 million time.
    8¡¢The cam controller main circuit passes breaks the ability to conform to the AC2 use category; The auxiliary circuit passes breaks the ability to be supposed to conform to the AC-11 use category, its
    concrete number like table 1.                                Table 1

    Use category

    Fixed operating current

    Puts through the condition

    The minute breaks the condition

    Passes breaks the number of times

    When gap produces (S)

    Circular telegram time (S)

    I£¨A£©

    U£¨V£©

    COS§¶

    I£¨A£©

    U£¨V£©

    COS§¶

    AC2

    32

    63

    128

    252

    418

    0£®65

    128

    252

    418

    0£®65

    25

    5~10

    Puts through >= 0.05

    The minute breaks <= 0.5

    AC-11

    2£®6

    28£®6

    418

    0£®7

    28£®6

    418

    0£®7

    50

    5~10

    ¡Ý0.5

    The cam controller main circuit electricity life should conform to the AC2 use category,The auxiliary circuit electricity life should conform to the AC-11 use  category,Its concrete £¦#118alue likeTable 2.         Table 2

    Use category

    Fixed operating current (A)

    Puts through the condition

    The minute breaks the condition

    Passes breaks the number of times (ten thousand)

    I£¨A£©

    U£¨V£©

    COS§¶

    I£¨A£©

    Ur£¨V£©

    COS§¶

    AC2

    32

    63

    80

    157.5

    380

    0.65

    32

    63

    152

    0.65

    3¡Á105

    AC-11

    2.6

    26

    380

    0.7

    26

    380

    0.4

    6¡Á105

    Table 1, table 2 center related parameters allowable deviations scope:  Electric current: 0.05% voltage: (Including restores voltage)  5%
    Power factor: 0.05

  4. overall dimension and installation dimension
    £¨1£©The controller contour and installs the size to see the chart, chart
    £¨2£©The contact part binding post screw, the auxiliary circuit is M5, the  main circuit is M6.

    Chart 1  KTJ15-63/32 cam controller installment and external  dimensions
    Chart 2  KTJ15-63/32L cam controller installment and external dimensions
  5. usual service conditions
    1¡¢Surrounding air temperature
    £¨1£©Periphery the most upper air was mad the temperature does not surpass +40 ¡æ.
    £¨2£©The surrounding air temperature lower limit is not lower than -5 ¡æ.
    £¨3£©24 hour in mean £¦#118alue, does not surpass +35 ¡æ.
    Note: When uses in -10 ¡æ or -25 ¡æ, the user should in the ordering when indicates.
    2¡¢Altitude above sea level
    The installation site altitude above sea level, does not surpass 2,000  meters.
    3¡¢Atmospheric condition
    The atmospheric relative humidity, is +40 ¡æ is does not surpass 50%  in the periphery maximum temperature, in compares under the low temperature to be possible to have the high relative temperature; When the wettest month monthly mean temperature is 25 ¡æ, it maximum relative humidity is 90% equally, and considers to on the product surface which because the temperature change occurs to congeal the dew.
    4¡¢The pollution rank    pollution rank is 3 levels
    5¡¢Installs the category   to install the category to divide III kind
    Note: When every surpasses the above condition use, should by supply and demand both sides take specially orders the agreement solution.
  6. Structure outline
        The KTJ15 series exchange cam controller, the protection rank is IP10, uses the vertical installment.

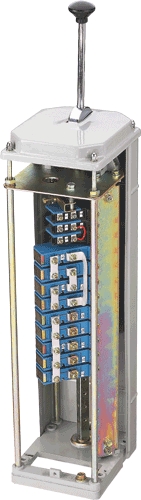

    The cam controller divides three parts: The control mechanism part, the cam and the contact systematic part and the shell are partial. Its control handle, for avoids because the hoist crane vibration and the
    accident collision causes the control mechanism misoperation, this handle has the zero position self-locking installment. When operation, only must press the handle, the zero position self-locking installment
    opens, then may operate.
    On the organization transmission partial packing body, the vertical operation handle is after the bevel drive cam shaft. The level control handle then is the through drive cam shaft, causes the contact group
    according to the stipulated procedure analysis and synthesis. The controller cam shaft is the vertical installment. The transmission partial various pivots use the rolling bearing, by reduces the friction force.
    Locates the notch wheel is but becomes by 3 millimeters steel plates ramming, and but obtains the good resistance to wear after the suitable heat treatment. Notch wheel overshooting has six index holes.
    The set screw loads in the position different hole, then decides the control handle the files figure. In about each six grades of scopes.
    The files figure may choose wilfully. The localization ratchet spring strength is may adjust, like this may act according to the special details, under the classifying clear premise, adjusts the ratchet spring strength to cause the handle operation in the permission scope.
    The cam for the black phenol aldehyde injection material, its structure is a jack-in type. Like this not only had guaranteed the rigging position is accurate, when like wants transforms the contact analysis and synthesis procedure, may conveniently take down the free cam, does not will certainly to put in order the Taiwan product to open greatly unloads greatly. Contact group structure for rotation type double break point. 32A and the 63A contact group installs the size same, installs the supporting plate to be general.
    The seat-s on a plane uses presses the cast-aluminium, the kneading board uses the steel plate to stretch takes shape, the seat-s on a plane and the kneading board connect a body with 4 props, has the weight to be light, the rigidity good characteristic. Around the shell can facilitate dismantling, by supplies the installment, to match using of the line and the service.
  7. use and servicing
    £¨1£©Cam controller application installment screw retention. Should make an effort under to the vertical handle the handle lever insertion steering wheel hole in to push, decides the zip fastener then to be
    able automatically to lock in, then then operates.

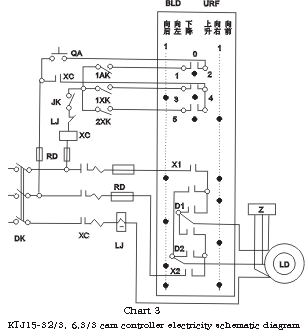

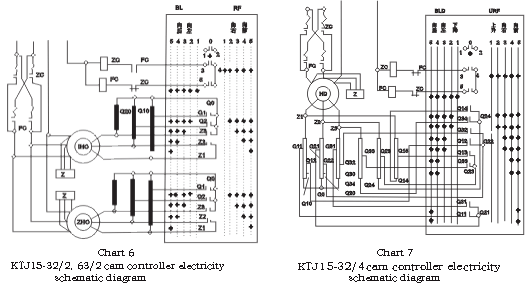

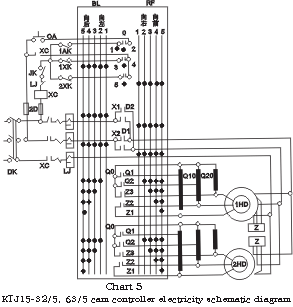

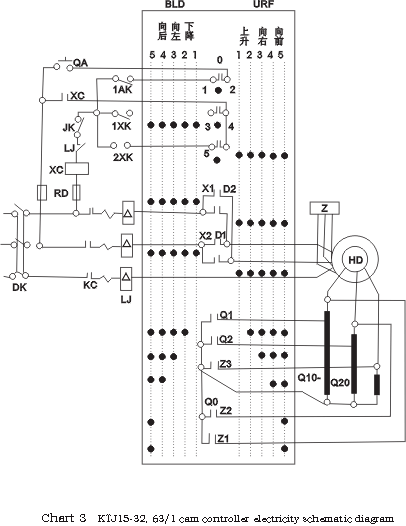

    £¨2£©According to the electric appliance schematic diagram request, the distinction then files operation control, observes the contact the analysis and synthesis whether the contact analysis and synthesis
    procedure does tally with the wiring diagram in, like does not have the symbol, should give to adjust or the replacement cam piece.

    £¨3£©Must inspect the electric motor in front of the circular telegram with the resistor related electrical system wiring is whether correct, earths whether reliably.

    £¨4£©After the circular telegram should according to the corresponding cam controller careful inspection electric motor movement situation, if has exceptionally, should the dump, after treat immediately verifies
    the reason only then to continue the circular telegram.

    £¨5£©The controller should request according to below to inspect the service frequently;

    a¡¢All bolts joint are partial must fasten, specially contact binding post screw£»

    b¡¢Rubs partially should maintain the certain lubrication frequently;

    c¡¢The contact active face should not have the obvious melt spot, burns the melt the spot with the superfine file careful repair, does not permit use sanding.

    d¡¢The damage components must promptly replace.
