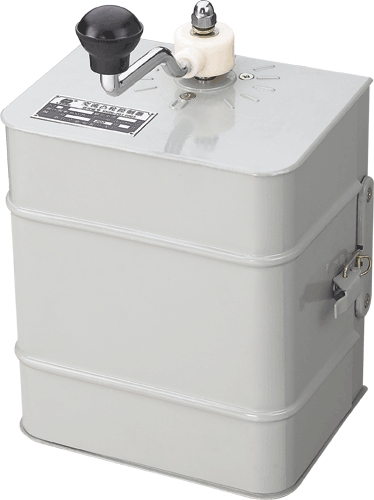

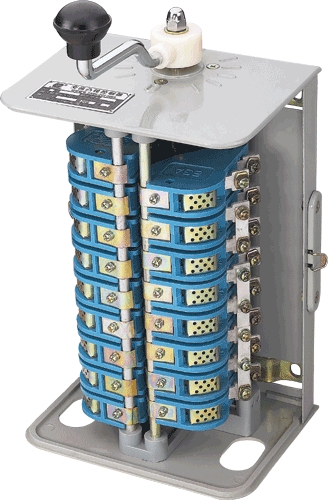

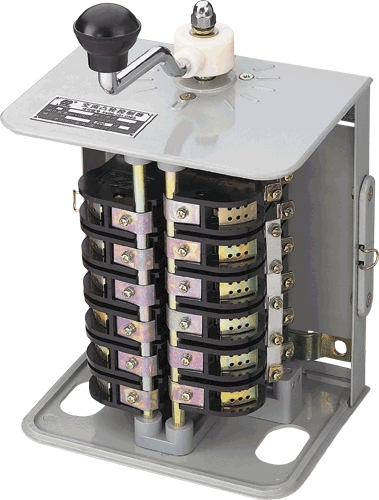

KTJ6 series AC cam controller
 ¡¡¡¡¡¡¡¡
- Use
KTJ6, KT12A series cam controller is used in 50HZ voltage to 380 V circuits , mainly used as starting, speed governing and inverting the AC motor.
- Technical data and size of installation
|
Type |
Specified electric current (A) |
Specified voltage (V) |
Set up an electric circuit continued one o'clock such as rate, motor high-power (tile ) 380 volts most controlled |
Install the size (mm.) |
|
KTJ6,
KTJ12A -25/1 |
25 |
380 |
12£®5 |
208¡Á170 |
|
KTJ6,
KTJ12A -25/2 |
25 |
380 |
2¡Á6£®3 |
283¡Á170 |
|
KTJ6,
KTJ12A -25/3 |
25 |
380 |
8 |
208¡Á170 |
|
KTJ6,
KTJ12A -60/1 |
60 |
380 |
32 |
208¡Á170 |
|
KTJ6,
KTJ12A -60/2 |
60 |
380 |
2¡Á16 |
283¡Á170 |
|
KTJ6,
KTJ12A -60/3 |
60 |
380 |
2¡Á25 |
223¡Á170 |

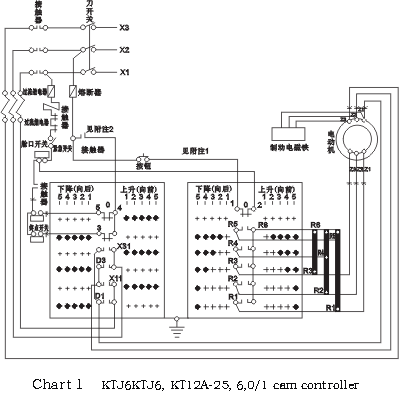

- Electric principle picture
- The order notice must be indicated while ordering: 1, Operation side or: (handwheel or the handle). 2, Type and name of the controller
|
