Technical data:
Material:
● PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation . Working Termperature: - 40℃ to 65℃, short time is 80℃.
● PA, Polyamide 6/6, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,Working Termperature: - 35℃ to 120℃, short time is 140℃.
● Brass, screw is Iron plated zinc.
● Voltage: 250 - 450V
● Color: blue and green color as standard
● Remark: We can according to customer require supply different size, such as, different length, width, hole diameter etc.
● PE, 聚乙烯, 良好的柔韧性、透明度、延伸性、 抗溶性, 耐辐射, 工作温度: - 40℃ to 65℃, 瞬时可达: 80℃
● PA, 尼龙 6/6, 防火等级:94V-2. 阻燃、 抗溶性、抗冲击力好, 工作温度: - 35℃ to 120℃, 瞬时可达140℃
● 黄铜, 螺丝铁质表面镀锌
● 适用电压范围: 250 - 450V
● 颜色: 绿色/蓝色,特殊颜色欢迎订做
● 备注：本章我司还可以按客户的要求提供不同长度、宽度、孔径、孔数产品
|

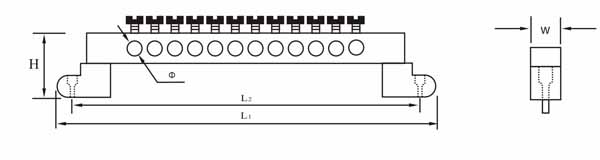

Item no. |
Spec. |
L1 |
L2 |
H |
W |
ø |
screw size |
Plastic setting |
|
w×h - hole |
mm |
|
SP030-01 |
6×9 - 7 |
55 |
35 |
28 |
11 |
5.2 |
M4×8 |
PE PA |
|
SP030-02 |
6×9 - 8 |
60 |
35 |
28 |
11 |
5.2 |
M4×8 |
PE PA |
|
SP030-03 |
6×9 - 10 |
74 |
35 |
28 |
11 |
5.2 |
M4×8 |
PE PA |
|
SP030-04 |
6×9 - 12 |
88 |
35 |
28 |
11 |
5.2 |
M4×8 |
PE PA |
|
SP030-05 |
6×9 - 15 |
106 |
35 |
28 |
11 |
5.2 |
M4×8 |
PE PA | |
