Technical data:
Material:
● PA, Polyamide 6/6, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,Working Termperature: - 35℃ to 125℃, short time is 140℃.
● Brass, screw is brass彩surface plated brass.
● Voltage: 250 - 450V
● Color: Natural color as standard
● PA, 尼龙 6/6, 防火等级:94V-2. 阻燃、 抗溶性、抗冲击力好, 工作温度: - 35℃ to 120℃, 瞬时可达140℃
● 黄铜表面镀铜，螺丝铜质表面镀锌
● 适用电压范围: 250 - 450V
● 颜色: 白色,特殊颜色欢迎订做
|

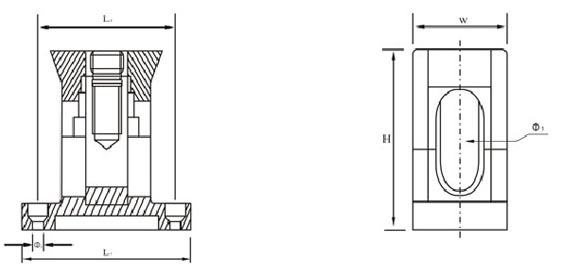

Item no. |
Spec. |
L1 |
L2 |
W |
H |
ø1 |
ø2 |
screw size |
|
mm |
|
SP026-01 |
16mm2 |
41 |
31.5 |
17 |
32 |
14.5 x 4.8 |
4.3 |
M8 |
|
SP026-02 |
25mm2 |
47.2 |
37.5 |
20.8 |
37.7 |
17 x 6.8 |
4.3 |
M10 |
|
SP026-03 |
35mm2 |
54.8 |
44.5 |
24.4 |
42.4 |
19 x 8.4 |
4.3 |
M12 |
|
SP026-04 |
50mm2 |
65 |
54 |
27 |
48.5 |
22 x 9.3 |
5 |
M14 |
|
SP026-05 |
70mm2 |
66.8 |
56 |
29 |
52.5 |
25 x 10.5 |
5 |
M16 |
|
SP026-06 |
95mm2 |
71 |
60 |
33.5 |
56.7 |
29 x 12.6 |
5 |
M18 |
|
SP026-07 |
120mm2 |
73.4 |
62 |
35.8 |
61 |
33 x 13.8 |
5 |
M20 | |
