LMZ(J)W1-0.5 Current Transformers

LMZ(J)W1-0.5

LMZ(J)W1-0.5 type current transformer

--    Type description

Rated voltage(KV)
Design NO
Outdoor type
Extention output
Cast-resin insulated
Busbar type
Current transformer
--    Technical date

Type
Rated transformation ratio(A)
Straight-through turn No.
Accuracy class and rated output COSØ=0.8
Rated insulation level(kV)
02
0.5
1
3
LMZ(J) W1-0.5
15/5
10

(5)

10

15

0.5/3
20/5
10
30/5
5
40/5
5
50/5
3
75/5
2
100/5
1
150/5
1
200/5
1
300/5
1

5
400/5
1
500/5
1
600/5
1
800/5
1
1000/5
1
10
15
20
50
1500/5
1
Note: any special requirements can be negotiated with us

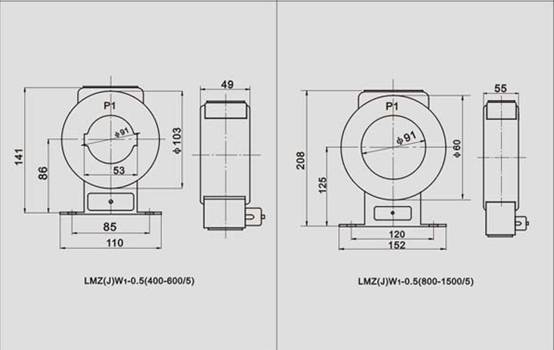

--    Overall dimension drawing
