LMZJ1-0.5 Current Transformers

LMZJ1-0.5

LMZJ1-0.5 type current transformer

    Type description

Rated voltage(KV)
Design NO
Extention output
Cast-resin insulated
Busbar type
Current transformer
    Technical date

Type
Rated transformation ratio(A)
Straight-through turn No.
Accuracy class and rated output COS Ø=0.8
Rated insulation level (kV)
0.2
0.5
1
3
LMZJ1-0.5
15/5
10

(5) (2.5)

10

15

0.5/3
20/5
10
30/5
5
40/5
5
50/5
3
75/5
2
100/5
2
150/5
1
200/5
1
300/5
1
400/5
1

5
500/5
1
600/5
1
800/5
1
1000/5
1

10

15

20

20
1500/5
1
2000/5
1
3000/5
1
4000/5
1
5000/5
1
Note: any special requirements can be negotiated with us

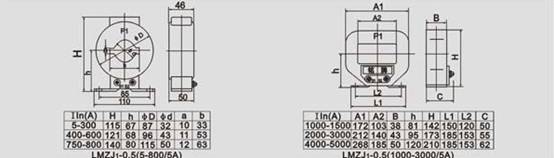

    Overall dimension drawing
