| Electrical Items >> Current Transformer >> CP Current Transformer 　

CP Catena Current Mutual Ware

Name: CP Catena current mutual ware

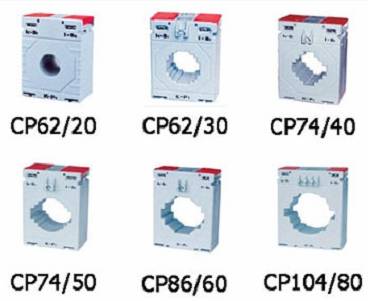

Model: CP62/20, CP62/30, CP74/40, CP74/50
Key Specifications & Feature



Dimension of case unit
Model
A
B
C
D
E
F
G
H
I
J
K
L
M
O
P
CP62/20
78
36
6.6
36
55
71
21
CP62/30
78
47
6.6
35
55
71
30.5
11
11
26
44
31
62
21
26
CP62/40
78
47
6.6
35
55
71
31
11
16
31
44
41
62
21
26
CP74/40
98
61
6.6
45
67
81
33
11
11
31
47
41
74
21
31
CP74/50
98
61
6.6
45
67
81
41
12
31
41
47
51
74
21
31
CP86/60
110
56
6.6
40
62
76
51
12
21
51
68
61
86
31
44
CP104/80
126
56
6.6
40
62
76
65
12
31
61
68
81
104
31
56

Model
Rated current(A)
Rated Burden(A)
Accuracy class
Rated Voltage(V)
Rated Frequency(Hz)
CP62/20
30/5A-80/5A
1.5~2.5
3.0~0.5
720
50/60
CP62/30
50/5A-300/5A
1.5~5
1.0~0.5
720
50/60
CP62/40
200/5A-600/5A
5~10
1.0~0.5
720
50/60
CP74/40
150/5A-800/5A
2.5~20
1.0~0.5
720
50/60
CP74/50
250/5A-1000/5A
5~20
1.0~0.5
720
50/60
CP86/60
250/5A-1200/5A
5~30
1.0~0.5
720
50/60
CP104/80
600/5A-2000/5A
5~45
1.0~0.5
720
50/60
CP140/100
1000/5A-3200/5A
5~30
1.0~0.5
720
50/60

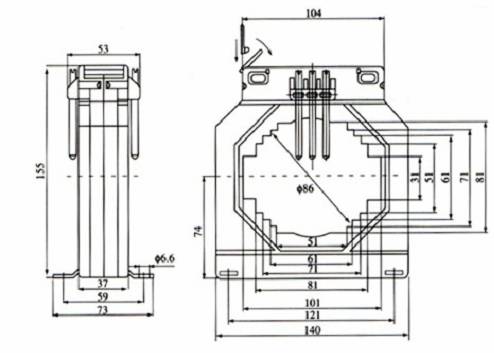

CP Catena Current Mutual Ware


Name: CP Catena current mutual ware
Model: CP140/100
Key Specifications & Feature

Rated current A
Primary/Secondary current: 100/5A-3200/5A
Rated burden 15VA-60VA
Accuracy class 1.0-0.2
Operating frequency 50/60Hz
