D363, D364 Current Transformers
D363 D364 Series:

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:

3 X 40A-600A
5A, 1A
BS7626, IEC44-1, IEC185
0.72/3KV
50-60Hz
1.25VA-5VA
0.5, 1.0, 3.0
Ith=60 X Ih
FS<5


Technical data:

Model

Primary/ secondary

Busbar Hole Dimension

Rated Burden (VA)

class

Rated
Voltage

Rated
Frequency

D363
3 X 40/5A-500/5A
3 X 27mm
1.25-5VA
1/3
0.72
50/60Hz
D364
3 X 300/5A-600/5A
3 X 27mm
2.5-5VA
1/3
0.72
50/60Hz
Dimension of case (mm):

Model

A

B

C

D

E

F

G

D363
185
84
27
75
87
61
41
D364
185
84
37
37
87
61
41

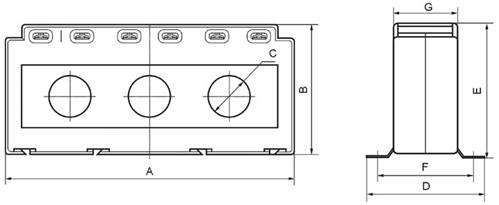

outline drawing:
