EMC Current Transformers

EMC series

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient: 		100/5-600/5
5A, 1A
BS7626, IEC44-1
0.66kV
50/60Hz
2.5VA-15VA
0.5, 0.5s
Ith=60 X Ih
FS<5
Technical data
Dimension of case (mm)
Type
A
B
C
D
E
F
G
H
EMC-30
80
108
44
63
77
31
26
11
EMC-40
80
108
44
63
77
41
31
11
Technical data
Type
Rated current(A)
VA
Class
EMC-30
100/5
5
0.5
150/5
5
0.5
200/5
5
0.5
EMC-40
200/5
5
0.5
250/5
5
0.5
300/5
10
0.5
400/5
10
0.5
500/5
15
0.5
600/5
15
0.5

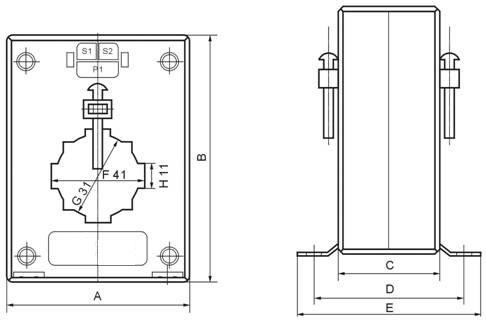

outline drawing:
