| Technical data & Specification: |
|
Model |
Rated current(A)Primary/Secondary |
Busbar Hole
Dimension |
Rated
Burden(VA) |
Accuracy
class |
Rated
Voltage |
Rated
Frequency |
|
DSM-20B |
50/5A-200/5A |
|
1.5-3 |
1.0 |
660V |
50/60Hz |
|
DSM-20 |
50/5A-200/5A |
20 X 10mm |
1.5-3 |
1.0 |
660V |
50/60Hz |
|
DSM-30 |
50/5A-200/5A |
20 X 10mm |
1.5-3 |
1.0 |
660V |
50/60Hz |
|
DSM-30 |
50/5A-300/5A |
30 X 10mm |
2.5-5 |
1.0 |
660V |
50/60Hz |
|
DS-40 |
150/5A-800/5A |
40 X 10mm |
5-10 |
1.0 |
660V |
50/60Hz |
|
DS-60 |
400/5A-1000/5A |
60 X 10mm |
10 |
1.0 |
660V |
50/60Hz |
|
DS-100 |
800/5A-3000/5A |
100 X 10mm |
5 |
1.0 |
660V |
50/60Hz | |
| Dimension of case (mm): |
|
Model |
A |
B |
C |
D |
|
DS-20A |
56 |
30 |
63 |
80 |
|
DS-20 |
56 |
30 |
63 |
50 |
|
DS-30 |
56 |
30 |
63 |
50 |
|
DS-30 |
79 |
42 |
87 |
66 |
|
DS-40 |
79 |
42 |
87 |
66 |
|
DS-60 |
103 |
42 |
113 |
66 |
|
DS-100 |
151 |
42 |
166 |
69 | |

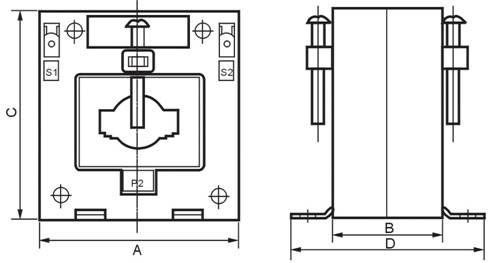

| outline drawing: |
 |
