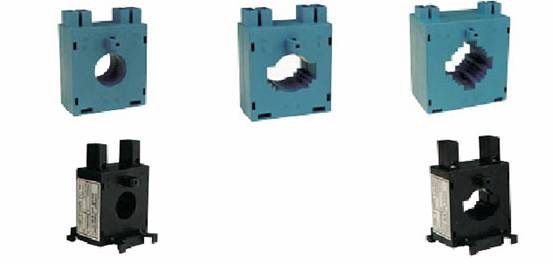

DX Series: |
| Model DX-20, DX-30, DX-40 are available for connecting with cable, and also available for connecting with bus bar. |
Maximum voltage:
Frequency:
Class:
Short-time thermal current:
Mounting methods:
Window dimensions |
0.66KV
50-60Hz
1.0
Ith=60Ih
either by din rail (35mm) or by screws
diameter 22mm (DX-20, DX-20L)
31 X 10mm (DX-30, DX-30L)
41 X 10mm (DX-40) |
| Technical data & Specification: |
|
Model |
Primary/
secondary |
Busbar Hole
Dimension
(MM) |
Rated
Burden
(VA) |
Class |
Rated
Voltage |
|
DX-20 |
50/5A-150/5A |
Ø=20mm |
1.5-2.5 |
1.0 |
660V |
|
DX-30 |
100/5A-500/5A |
30 X 10mm |
1.5-2.5 |
1.0 |
660V |
|
DX-40 |
150/5A-1000/5A |
40 X 10mm |
3-10 |
1.0 |
660V |
|
DX-20L |
50/5A-150/5A |
Ø=20mm |
1.5-2.5 |
1.0 |
660V |
|
DX-30L |
100/5A-500/5A |
30 X 10mm |
1.5-2.5 |
1.0 |
660V | |
| Dimension of case (mm): |
|
Model |
A |
B |
C |
D |
E |
|
DX-20 |
53 |
28 |
57 |
66 |
54 |
|
DX-30 |
53 |
28 |
57 |
66 |
54 |
|
DX-40 |
71 |
45 |
73 |
81 |
65 |
|
DX-20L |
53 |
28 |
57 |
66 |
54 |
|
DX-30L |
53 |
28 |
57 |
66 |
54 | |

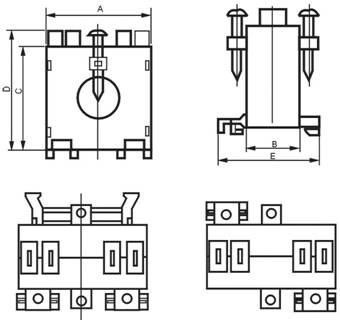

| outline drawing: |
 |
