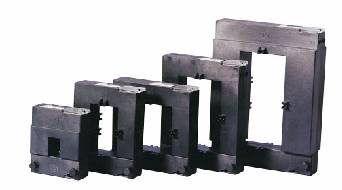

Split core current transformers DP series:
The DP series of current transformers have been especially designed to facilitate their installation in new or already existing networks. Thanks to its split core they may be installed without opening any cable or bus bar circuit.
The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bus bars through the transformer core or to connect such cables to the primary terminals. The DP series transformers core may be easily opened and they may be installed and connected without any supply interruption, thus saving time and installation costs.
The main features of DP transformers are:
-Small size and easy mounting
-Wide inner window, allowing clamping of big cables or bus bars
-Wide range of sizes to accomodate all the existing installations
-High accuracy and reliability
Split core current transformers DP series:
Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient: |
5A, 1A
IEC44-1, BS7626
0.72/3kV
50/60Hz
1VA-30VA
0.5, 1.0, 3.0
Ith=100 X In
FS<5 |
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
Weight(kg) |
|
DP-23 |
20 |
30 |
51 |
89 |
111 |
34 |
47 |
40 |
32 |
0.75 |
|
DP-58 |
50 |
80 |
78 |
114 |
145 |
32 |
32 |
32 |
33 |
0.90 |
|
DP-88 |
80 |
80 |
108 |
144 |
145 |
32 |
32 |
32 |
33 |
1.05 |
|
DP-812 |
80 |
120 |
108 |
144 |
185 |
32 |
32 |
32 |
33 |
1.25 |
|
DP-816 |
80 |
160 |
120 |
184 |
245 |
52 |
52 |
52 |
38 |
4.3 | Technical data & Specification:
|
Model |
Nominal current ratio |
|
|
Class:0.5 |
|
VA |
|
DP-23 |
100 |
- |
|
150 |
- |
|
200 |
- |
|
250 |
- |
|
300 |
1.5 |
|
400 |
2.5 |
|
DP-58 |
250 |
1.5 |
|
300 |
1.5 |
|
400 |
1.5 |
|
500 |
2.5 |
|
600 |
2.5 |
|
750 |
2.5 |
|
800 |
2.5 |
|
1000 |
5 |
|
DP-88 |
250 |
1.5 |
|
300 |
1.5 |
|
400 |
1.5 |
|
500 |
2.5 |
|
600 |
2.5 |
|
750 |
2.5 |
|
800 |
2.5 |
|
1000 |
5 |
|
DP-812 |
500 |
2.5 |
|
600 |
2.5 |
|
750 |
2.5 |
|
800 |
2.5 |
|
1000 |
6 |
|
1200 |
6 |
|
1250 |
7.5 |
|
1500 |
7.5 |
|
DP-816 |
1000 |
1. |
|
1500 |
15 |
|
2000 |
15 |
|
2500 |
15 |
|
3000 |
20 |
|
4000 |
20 |
|
5000 |
20 |

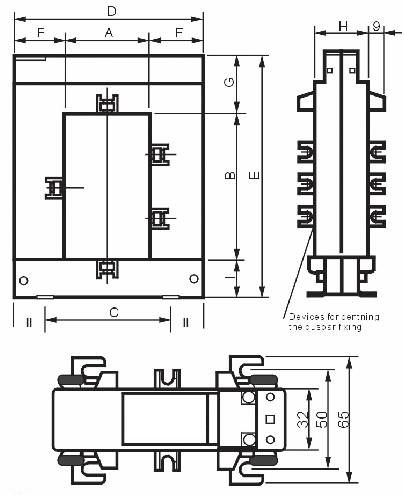

outline drawing:
 |
