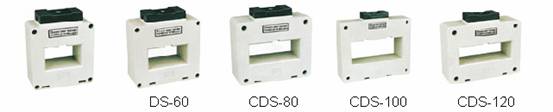

CDS Current Transformers |
|
|
| CDS Series: |
Primary current:
Secondary approval:
Standard current:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:
-High fire retardancy and security
-Wide range of sizes to accommodate all the existing installations |
| Specification: |
|
Model |
Primary / secondary (A) |
|
CDS-40 |
100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5A |
|
CDS-60 |
300/5, 400/5, 500/5, 600/5, 750/5, 800/5, 1000/5, 1200/5A |
|
CDS-80 |
500/5, 600/5, 750/5, 800/5, 1000/5, 1200/5, 1500/5, 1600/5A |
|
CDS-100 |
600/5, 750/5, 800/5, 1000/5, 1200/5, 1500/5, 1600/5, 2000/5A, 2500/5, 3000/5A |
|
CDS-120 |
1000/5, 1200/5, 1500/5, 1600/5, 2000/5, 2500/5, 3000/5, 4000/5A, 5000/5 | |
| Dimension of case (mm): |
|
Model |
Dimensions |
Busbar hole dimension |
Installation dimension |
|
W |
H |
D |
A |
E |
M |
|
DS-40 |
75 |
105 |
45 |
42 |
32 |
45 |
|
DS-60 |
98 |
116 |
45 |
62 |
32 |
42 |
|
DS-80 |
118 |
120 |
45 |
82 |
32 |
60 |
|
DS-100 |
140 |
130 |
49 |
102 |
32 |
80 |
|
DS-120 |
165 |
152 |
49 |
122 |
53 |
80 | |

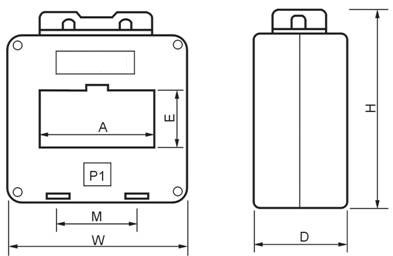

| outline drawing: |
| |  |
|
