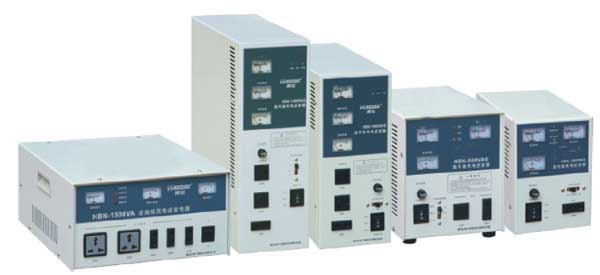

| General (HBN high reliability charge inverter) |
Based on HBC series integrating high frequenecy switching technology. HBN is developed with portability and strong adaptability. With reliable core circuit, fast speed MOSFET device, it features high efficiency, fast response,
space-saving ,Wght weight and perfect protection ,Charging and inverting integrated design make it possible thatthe transition form / to commercial power supply to / from battery power supply inverting is automatical ,Inverter
has the automatic battery charging management function: battery over - voltage protection , charging current adjustment , under voltage and over load protection during draining .So, it can work individually for 24hrs a day
without worring about power interruption.
|
| technicalspecification (HBN high reliability charge inverter) |
| Output rated power |
300~1700VA |
| Instantaneous peak power |
2 times of rated power VA (t 1S) |
output voltage
|
220V or 110V |
output frequency
|
50Hz or 60Hz |
output waveform
|
Modified sine wave (PWM square wave) |
Applicable load
|
Resistive load and capacitive load, not suitable for inductive load and capacitor step-down power supply |
Charge input voltage
|
220V or 110V |
Emergency holding time
|
Depend on battery capacity and load power. The calculation formula as follows: |
Inversion emergency time (H)
|
=Battery capacity (AH)/Discharge current (A)¡Á0.70§Ý |
Under-voltage protection
|
DC9.5V-10.0V/DC12V |
| Over-charge protection |
DC14.8V-15.2V/DC12V |
Under-voltage protection point and over-charge protection of battery with other specifications are multiplied
according to 12V. | |
| Model & spec (HBN high reliability charge inverter) |
| Model |
DC input voltage |
AC output voltage |
Outline size(cm) |
| HBN-300VAG |
12V |
110V or 220V |
27¡Á13¡Á23 |
| HBN-500VAG |
12V¡¢24V |
110V or 220V |
27¡Á13¡Á27 |
| HBN-1000VAG |
12V¡¢24V |
110V or 220V |
33¡Á13¡Á32 |
| HBN-1500VAG |
12V¡¢24V |
110V or 220V |
33¡Á13¡Á38 | |
|
