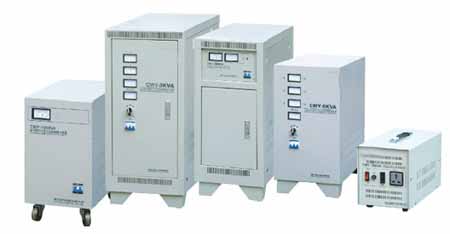

General (JJW.JSWseries precision purified AC voltage stabilizer)

JJW,  JSW  series  precision  purified  AC  voltage  stabilizer  integrates  voltage  stabilization  and purification and adopts  advanced  sine  energy  distributing technology, it has following obvious features : high accuracy of voltage stabilization  rapid  dynamic  response ,  little  distortion,  strong  adaptability  of  load ,   good  anti -interference of electromagnetism , besides, it can take effect on absorbing and restraining kinds of noises and spike voltage.

Application (JJW.JSWseries precision purified AC voltage stabilizer)

For lab, test equipment, metering equipment, medical equipment, high-precision instrument and so on.

Performance (JJW.JSWseries precision purified AC voltage stabilizer)

¡¡lnput voltage Single-phase 185V-250V Three-phase 320-430V ¡¡Efficiency >90% ¡¡Waveform distortion ¡Ü0.5% ¡¡Output voltage Single-phase 220,accuracy1% Three-phase 220,accuracy1% ¡¡Response time 200ms-100ms¡Ü5V ¡¡Spike voltage ¡¡absorption lnput 500v13 ¦ÌSOutput ¡¡Frequency 50Hz¡À2Hz ¡¡Environment temp -10¡æ--+40¡æ ¡¡Over voltage ¡¡protection £¦#118alue ¡¡ Single-phase 246¡À4V three-phase426 ¡À7V ¡¡Temperature rise <60¡æ ¡¡Dielectric strength 1500V/min ¡¡Load feeect ¡Ü¡À0.5% ¡¡lnsulation resistance Single-phase>5M¦¸Three-phase>2M¦¸

model and spec (JJW.JSWseries precision purified AC voltage stabilizer)

1Spec.(kVA) Product size D¡ÁW¡ÁH(cm) Packing size D¡ÁW¡ÁH(cm) Weight(kg) Pcs. JJW  Single phase  220V JJW-1KVA 35¡Á16¡Á25 41¡Á23¡Á33 13 1 JJW-2KVA 39¡Á17¡Á29 47¡Á24¡Á36 17 1 JJW-3KVA 46¡Á23¡Á41 57¡Á34¡Á51 27 1 JJW-5KVA 46¡Á23¡Á41 57¡Á34¡Á51 37 1 JJW-10KVA 51¡Á27¡Á47 61¡Á39¡Á56 65 1 JJW-15KVA 66¡Á42¡Á47 78¡Á54¡Á58 87 1 JJW-20KVA 66¡Á42¡Á47 78¡Á54¡Á58 100 1 JJW-30KVA 81¡Á62¡Á59 94¡Á74¡Á70 114 1 JSW            Three-phase  380V JSW-3KVA 61¡Á32¡Á56 72¡Á44¡Á65 33 1 JSW-6KVA 61¡Á32¡Á56 72¡Á44¡Á65 45 1 JSW-9KVA 71¡Á35¡Á66 82¡Á46¡Á75 63 1 JSW-15KVA 71¡Á35¡Á66 82¡Á46¡Á75 81 1 JSW-20KVA 71¡Á35¡Á66 82¡Á46¡Á75 115 1 JSW-30KVA 71¡Á40¡Á66 82¡Á52¡Á85 140 1 JSW-50KVA 70¡Á58¡Á130 90¡Á74¡Á142 165 1 JSW-75KVA 70¡Á58¡Á130 90¡Á74¡Á142 185 1 JSW-100KVA 70¡Á58¡Á130 90¡Á74¡Á142 215 1
