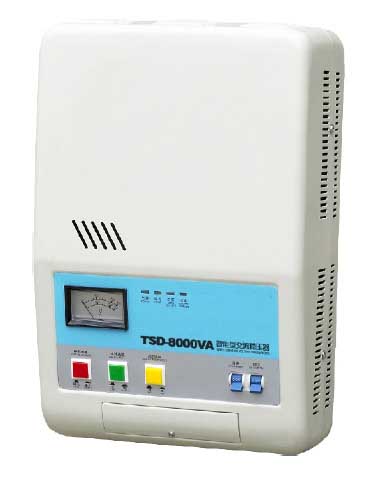

 General TSD-H (hanging type)servo AC voltage stabilizer
      TSD-H (hanging type ) servo mode AC voltage stabilizer is developed on the base of  SVC series high accuracy full -automatic AC voltage stabilizer. Compared with the original product, this  type possesses  higher quality and more functions,  novel and luxurious appearance,  hanging type installation for requiring smallarea . It forms the control system with linear integrated circuit and logical circuit, and drives the  contact  type voltage regulator to regulating automatically by controlling the servo motor. It adopts high precision  servo  voltage  stabilizing  technology  which usually is applied to industry for civilian industry product, to conquer the weakness of instantaneous  power  failure of traditional switching, andconsequently realize high precision and uninterrupted stable voltage output, when the voltage from outer power network  is  not  stable,  it  also can guarantee  the top  grade  electrical  appliances  work safely  and  normally  and  prolong  their  service  lives  effectively ,  it  is really the only ideal protection product for household and imported top grade electrical appliances (power supply of 110V).
 Application TSD-H (hanging type)servo AC voltage stabilizer
      For office equipment, test equipment, medical equipment, industrial automation equipment, household electrical
appliance, lighting system, communication system, etc.
 Performance TSD-H( hanging type)servo AC voltage stabilizer
lnput volatage Single-phase 160V-250V Ambient temperature -5¡æ--+40¡æ
Output voltage Single-phase 220Vand110V Relatve humidity ¡Ü90%
Voltage stabilizing precision 220V¡À3%and 110V¡À6% Waveform distortion No additional waveform distortion
frequency 50Hz/60Hz
Adjusting time <1s (when input voltage has a change of 10%) Load power factor 0.8
Efficiency >90% Dielectric strength 1500V/min
Over-voltage protection 246V¡À4V lnsulation resistance ¡Ý2M¦¸
Under-voltage protection 184V¡À4V Delay time Long 5min¡À2min,short 5s¡À2s
 Model and spec TSD-H (hanging type)servo AC voltage stabilizer
¡¡Spec(KVA) Product size D¡ÁW¡ÁH(cm) Product size D¡ÁW¡ÁH(cm) Weight(kg) Qty
¡¡TSD-H-3KVA 37¡Á25¡Á13 42¡Á32¡Á18 14 1
¡¡TSD-H-4KVA 37¡Á25¡Á13 42¡Á3218 15 1
¡¡TSD-H-5KVA 43¡Á30¡Á14 49¡Á36¡Á19 22 1
¡¡TSD-H-6KVA 43¡Á30¡Á14 49¡Á36¡Á19 23 1
¡¡TSD-H-7KVA 43¡Á30¡Á14 49¡Á36¡Á21 25.5 1
¡¡TSD-H-8KVA 48¡Á32¡Á19 52¡Á38¡Á25 32 1
¡¡TSD-H-10KVA 48¡Á32¡Á19 52¡Á28¡Á35 37 1
