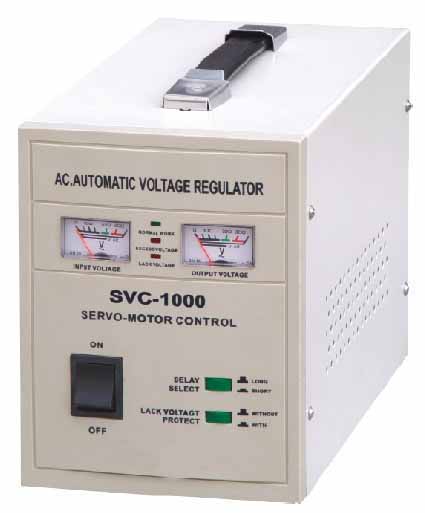

| General SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer |
SVC-H series single-phase voltage stabilizer not only bears all characteristics of SVC, but also has advantages of
luxurious appearance , strong protection functions like over - voltage protection and under-voltage protection,
besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance
and price.
|
| Performance SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer |
| lnput voltage |
Single-phase 160V-250V |
Delay time |
Long 5min¡À2min,short 5s¡À2s |
| Output voltage |
Single-phase 220V and 110V |
Ambient temperature |
-5¡æ--+40¡æ |
| Accuracy of voltage stabilization |
220V¡À3%and 110V¡À6% |
Relative humidity |
¡Ü90% |
| frequency |
50Hz/60Hz |
Waveform distortion |
No additional waveform distortion |
| Adjusting time |
<1s (when input voltage has a change of 10%) |
Load power factor |
0.8 |
| Efficiency |
>90% |
Dielectric strength |
1500/min |
| Over-voltage protection |
246V¡À£´£Ö |
lnsulation resistance |
¡Ý2M¦¸ | |
| Model and specification SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer |
| Spec(KVA) |
Product size D¡ÁW¡ÁH(cm) |
Product size D¡ÁW¡ÁH(cm) |
Weight(kg) |
Qty |
| SVC-H0.5 |
22¡Á14¡Á20 |
39¡Á29¡Á47 |
4.5 |
4 |
| SVC-H1 |
23¡Á14¡Á20 |
39¡Á31¡Á47 |
6 |
4 |
| SVC-H1.5 |
23¡Á14¡Á20 |
39¡Á31¡Á47 |
6.5 |
4 |
| SVC-H2 |
28¡Á14¡Á20 |
39¡Á35¡Á47 |
8 |
4 |
| SVC-H3 |
34¡Á21¡Á29 |
42¡Á29¡Á36 |
14 |
1 |
| SVC-H5 |
40¡Á21¡Á29 |
48¡Á29¡Á37 |
21.5 |
1 | |
| Application (SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer) |
For office equipment, test equipment, medical equipment, industrial automation equipment, household appliance,
lighting system, communication system, etc. |
|
