Technical data:
Material:
● PC, Polycorbonate, good glossniess, inflaming retarding, bounce impact force and thermal stability is great
● Brass, screw is Iron plated zinc.
● Voltage: 250 - 450V
● Color: Natural color as standard
● PC, 聚碳酸酯, 光泽度好、阻燃、抗冲击力及热稳定性能佳、抗污染, 工作温度: - 60℃ to 135℃
● 黄铜, 螺丝铁质表面镀锌
● 适用电压范围: 250 - 450V
● 颜色: 产品本色,特殊颜色欢迎订做
|

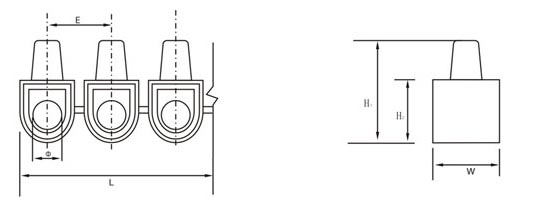

Item no. |
Spec. |
L |
W |
H 1 |
H 2 |
ø |
E |
screw size |
material |
|
mm |
|
SP016-1 |
2.5mm 2 |
100 |
17.4 |
18 |
10 |
4.2 |
10 |
M3.0 |
PC |
|
SP016-2 |
4mm 2 |
119 |
20.1 |
20.3 |
10 |
4 |
12 |
M3.0 |
PC |
|
SP016-3 |
6mm 2 |
137.7 |
22.8 |
22.8 |
12.5 |
6.2 |
14.5 |
M5.0 |
PC |
|
SP016-4 |
10mm 2 |
167 |
27 |
26.5 |
14.8 |
8 |
17 |
M6.0 |
PC |
|
SP016-5 |
16mm 2 |
222 |
31 |
33.8 |
17.4 |
10 |
22 |
M8.0 |
PC |
|
SP016-6 |
25mm 2 |
244 |
38.4 |
42.3 |
21.5 |
12 |
25 |
M10.0 |
PC | |
