Technical data:
Material:
● PA, Polyamide 6/6, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,Working Termperature: - 35℃ to 120℃, short time is 140℃.
● Brass, screw is brass too, surface plated brass.
● Voltage: 250 - 450V
● Color: grey and white color as standard
材质：
● PA, 尼龙 6/6, 防火等级:94V-2. 阻燃、 抗溶性、抗冲击力好, 工作温度: - 35℃ to 120℃, 瞬时可达140℃
● 黄铜, 螺丝铜质表面镀铜
● 适用电压范围: 250 - 450V
● 颜色: 灰色,白色, 特殊颜色欢迎订做
|

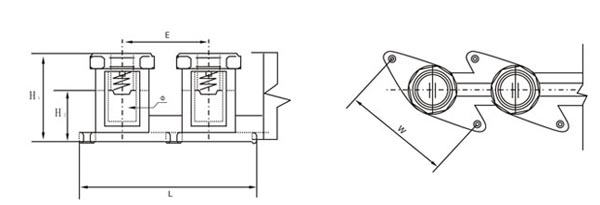

Item no. |
Spec. |
L |
W |
H 1 |
H 2 |
ø |
E |
screw size |
material |
|
mm |
|
SP012-01 |
16mm 2 |
173 |
26.4 |
24 |
11.5 |
8×5 |
21 |
M8 |
PA |
|
SP012-02 |
25mm 2 |
206 |
31 |
27.5 |
12.7 |
9×6 |
25 |
M9 |
PA |
|
SP012-03 |
35mm 2 |
250 |
41.5 |
33 |
16.8 |
12×8 |
30 |
M12 |
PA |
|
SP012-04 |
50mm 2 |
260 |
41.5 |
35.5 |
17.2 |
14×8.5 |
31.5 |
M14 |
PA |
|
SP012-05 |
70mm 2 |
272 |
42 |
38 |
21 |
16×9 |
33 |
M14 |
PA | |
