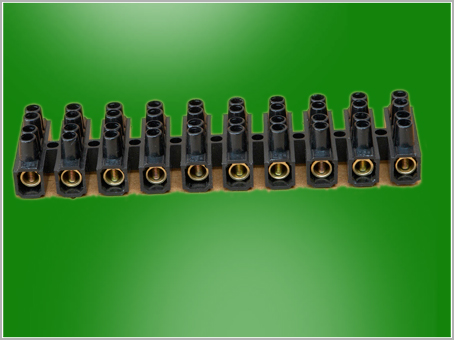

SP008 H Type Double-lines Terminal Block

Technical data:

Material:
● PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation .  Working Termperature: - 40℃ to 65℃, short time is 80℃.
● PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force.Working Termperature: - 30℃to 90℃, short time is 110℃
● PA, Polyamide 6/6, 94V-2 grade. Inflaming retarding, good resist dissolve, good bounce impact force,  Working Termperature: - 35℃ to 120℃, short time is 140℃.
● Brass, screw is Iron plated zinc.
● Voltage: 250 - 450V
● Color: SP008 black color as standard

● PE, 聚乙烯, 良好的柔韧性、透明度、延伸性、 抗溶性, 耐辐射,   工作温度:  - 40℃ to 65℃, 瞬时可达: 80℃
● PP, 聚丙烯, 阻燃、低透明度、低刚性, 抗冲击力好, 工作温度: - 30℃ to 90℃, 瞬时可达 110℃
● PA, 尼龙 6/6, 防火等级:94V-2. 阻燃、 抗溶性、抗冲击力好,工作温度:  - 35℃ to 120℃, 瞬时可达140℃
● 黄铜, 螺丝铁质表面镀锌
● 适用电压范围: 250 - 450V
● 颜色: SP008黑色.
