Technical data:
Material:
● Bakelite, mechanical strength is high, abrasionproof and flame retardant paint, insulation property is good, but brittleness.Working Termperature:- 35℃ to 125℃, short time is 140℃.
● Brass, screw is Iron plated zinc.
● Voltage: 250 - 450V
● Color: black color
● 胶木，也称电木，机械强度高，坚硬耐磨，性能稳定，耐燃、吸湿性低，绝缘性能佳, 但性脆,工作温度：- 35℃ to 130℃
● 黄铜, 螺丝铁质表面镀锌
● 适用电压范围: 250 - 450V
● 颜色: 黑色
|

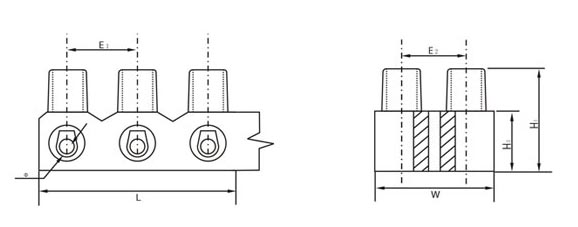

Item no. |
Spec. |
L |
W |
H1 |
H2 |
ø |
E1 |
E2 |
screw size |
material |
|
mm |
|
SP007-01 |
5A 4mm2 |
114.7 |
16.5 |
13.5 |
10 |
3.3 |
9.7 |
7 |
M2.5 x 4 |
Bakelite |
|
SP007-02 |
6A 6mm2 |
117.5 |
20 |
15 |
10.1 |
3.3 |
10 |
9.2 |
M3.0 x 5 |
Bakelite |
|
SP007-03 |
15A 12mm2 |
136.3 |
24.6 |
16.5 |
11 |
4.5 |
11.5 |
10.5 |
M3.5 x 6 |
Bakelite |
|
SP007-04 |
30A 16mm2 |
178 |
29.4 |
22.4 |
14.8 |
5.5 |
15 |
12.5 |
M4.0 x 7 |
Bakelite | |
