Technical data:
Material:
● PA, Polyamide 6/6, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force, Working Termperature: - 35℃ to 125℃, short time is 140℃.
● Brass, screw is Iron plated zinc.
● Spring is stainless steel.
● Voltage: 250 - 450V
● Color: Natural color as standard
● PA, 尼龙 6/6, 防火等级 :94V-2. 阻燃、 抗溶性、抗冲击力好 , 工作温度 : - 35 ℃ to 120 ℃ , 瞬时可达 140 ℃
● 黄铜 , 螺丝铁质 表面镀锌
● 弹簧片为不锈钢
● 适用电压范围 : 250 - 450V
● 颜色 : 产品本色
|

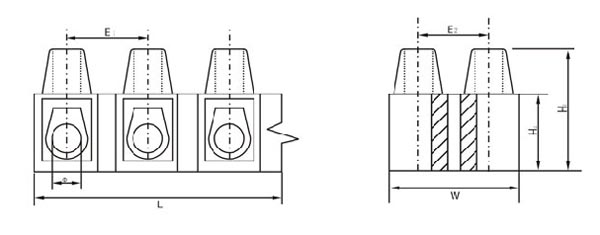

Item no. |
Spec. |
L |
W |
H1 |
H2 |
ø |
E1 |
E2 |
screw size |
material |
|
mm |
|
SP002-01 |
3A 4mm2 |
93 |
17 |
12.5 |
8 |
3 |
8 |
5.8 |
M2.5×4 |
PA |
|
SP002-02 |
6A 6mm2 |
115.4 |
19 |
15.5 |
9 |
3.3 |
9.6 |
6.3 |
M3.0×4.5 |
PA |
|
SP002-03 |
10A 10mm2 |
129.5 |
20.7 |
16.5 |
10 |
4.2 |
11 |
7.6 |
M3.0×6 |
PA |
|
SP002-04 |
15A 12mm2 |
138 |
22.5 |
19 |
10.3 |
4.5 |
12 |
8.6 |
M4.0×6.5 |
PA |
|
SP002-05 |
30A 16mm2 |
165 |
25.5 |
20 |
11.8 |
5.6 |
14 |
9.5 |
M4.0×7 |
PA | |
