DEM021MB |
| THREE PHASE FOUR WIRE ELECTRONIC DIN-RAIL ACTIVE ENERGY METER |
| ¡¡ |
 |
| Application |
|
DEM021MB three phase three wire electronic DIN rail active energy meter is a kind of new style three phase three wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy
consumption from three phase three wire AC electricity net. This meter has seven digits LCD displays shows the active energy consumption. And there is a maintenance-free lithium batteries in it, it use for displaying power cut reading. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2006 3 0107349.1, any other country patent certificate are in assessing. |
| ¡¡ |
|
| Functions and features |
¡ñ 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves.
¡ñ Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
¡ñ Seven digits display LCD, standard configuration 6+1 digits display (999999.1kWh). May select 5+2 digits display (Please specified when ordering).
¡ñ There is a maintenance-free lithium batteries in it, it use for displaying power cut reading
¡ñ There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant (the output rate is 10 or 100imp/kWh, can select). And contact with all kind of AMR system conveniently. Complying with standard IEC 62053-31 and DIN 43864.
¡ñ Four LED instructions respectively power supply state (line voltage L12 & L32) and signal of closed energy impulse and distant energy impulse.
¡ñ Automatic detection the direction of the flow of load current. And Instructions on individual LED
¡ñ Single direction two components measure three phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
¡ñ Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of wiring, and use CT (Product Configuration code is LB) and PT & CT (Product Configuration code is KB) for operation.
¡ñ Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is ME). |
| ¡¡ |
|
| Technical parameters |
|
Model |
Accuracy |
Reference
voltage (V) |
Current
specifications (A) |
Starting
current (A) |
Insulation
performance |
|
DEM021MB |
Class 1 |
3 x 220
3 x 400 |
5(30)
10(60)
20(100) |
0.02
0.04
0.08 |
AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV |
|
| *If you need different reference voltage or current specification, please advisory our sales. |
| ¡¡ |
|

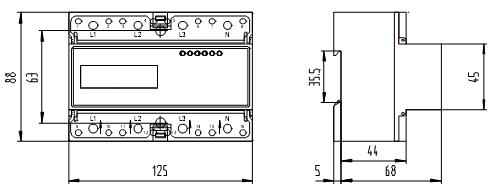

| Outer and mount dimension |
 |
| ¡¡ |
|

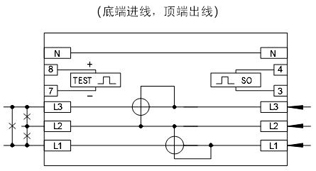

| Wiring diagram (Type S) |
 |
|
Terminal |
Note |
| L1 |
L1 phase line |
| L2 |
L2 phase line |
| L3 |
L3 phase line |
| N |
Don't use |
| 7 and 8 |
Port of pulse output passive closed |
| 3 and 4 |
Port of pulse output passive distant | | | |
|
