DEM011TI |
| SINGLE PHASE ELECTRONIC DIN-RAIL ACTIVE ENERGY METER |
| ¡¡ |
 |
| Application |
|
DEM011TI single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption
from single phase AC electricity net, it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2006 3 0106726.X, any other country patent certificate are in assessing |
| ¡¡ |
|
| Functions and features |
¡ñ 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board setting (mounting holes center distance 67 mm), users can choose any one by themselves.
¡ñ Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
¡ñ 5+1 digits display (99999.1kWh) by step motor type impulse register.
¡ñ There are a polarity port of pulse output passive closed and a no polarity port of pulse output passive distant, the output rate is 10 or 100 imp/kWh (can select), And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
¡ñ Two LED instructions power supply state (green) and signal of energy impulse (red).
¡ñ Standard configuration don¡¯t detection direction of the flow of load current. May select automatic detection the direction of the flow of load current. And instructions (Only red energy impulse signal when working, that is meaning the direction of the flow of load current reverse).
¡ñ Single direction measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
¡ñ Directly connect operation, there are two types you may select. Standard configuration type T wiring, may select type S wiring (Product Configuration code is AI).
¡ñ Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is TJ). |
| ¡¡ |
|
| Technical parameters |
|
Model |
Accuracy |
Reference
voltage (V) |
Current
specifications (A) |
Starting
current (A) |
Insulation
performance |
|
DEM011TI |
Class 1 |
127
230 |
5(30)
10(50)
20(100) |
0.02
0.04
0.08 |
AC voltage 4kV for 1 minute,
1.2/50us waveform
impulse voltage 6kV |
|
| *If you need different reference voltage or current specification, please advisory our sales. |
| ¡¡ |
|

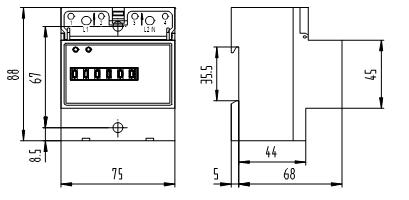

| Outer and mount dimension |
 |
| ¡¡ |
|
| Wiring diagram (Type T) |
 |
|
Terminal |
Note |
| L |
Phase line (Inlet from bottom, outlet from top) |
| N |
Neutral line (Inlet from bottom, outlet from top) |
| 2 and 3 |
Port of pulse output passive |
| 1 and 4 |
Port of pulse output passive |
|
Type T wiring: You needn't cut the cable when wiring, please let cable through the meter wiring hole | | | |
|
