SPR/SMR 13A RCD Protected Safety Socket
Application
* An easily fitted Socket incorporating a Residual Current Device,give much greater safety in the use of electrical appliances against a rick of electrocution.
* SPR plastic type can be fitted to a standard box with minimum depth of 25mm.
* SMR metel type when installing an earth link must be wired to the earth terminal in the box by using side knockouts.
* Press green reser(R)button and window indicator turns red
Press white test(T)button and window indicator turns black means the RCDhas tripped successfully.
* Designed and menufactured in accordance with the relevant clauses of BS1363 plugs fittend with a BS1362 fuse only.
Technical Data
Rated Voltage:AC220-240V/50Hz
Maximum operating current:13A
Rated trip current:30mA
Typical Trip time:40mS
RCD contact breaker:Double pole
Cable capacity:6mm

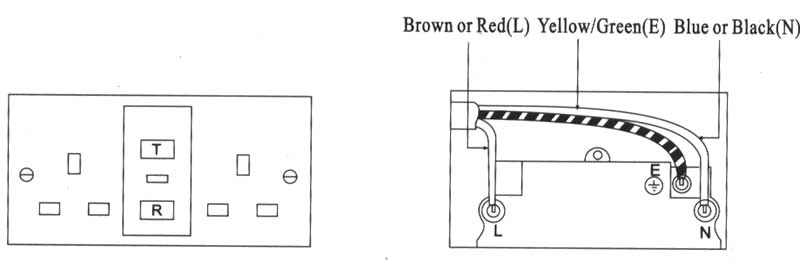

Wiring Instruction
Terminals are clearly marked L,N,E on the back of RCD which should be wired with the same way as an ordinary socket. |
|
