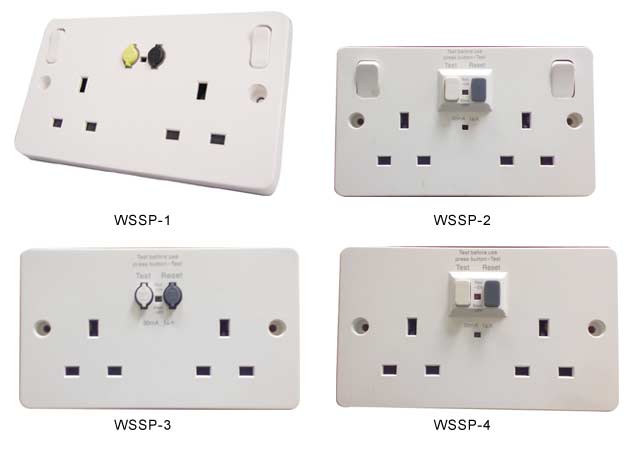

WSP 13A RCD Protected Safety Socket

Application
*An easily fitted Socket incorporating a Residual Current Device,give much greater safety in the use of electrical appliances against a rick of electrocution.
*WSP plastic type can be fitted to a standard box with minimum depth of 25mm.
* Designed to be usd in the fied position only and not mounted outdoors.Press green reset(R)button the indicator flag turns red and indicator light turns on.
Press white/yellow test(T)button the indicator flag turns black and indicator light turns off means the RCD has tripped successfully
 *Designed and manufactured in accordance with the relevant clauses of BS7288,and used with BS1363 plugs fitted with a BS1362 fuse only.

Technical Data
Rated Voltage:AC220-240V/50Hz
Maximum operating current:13A
Rated trip current:30mA
Typical Trip time:40mS
RCD contact breaker:Double pole
Cable capacity:6mm

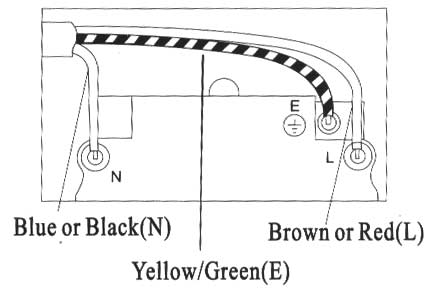

Wiring Instruction
Terminals are clearly marked L,N,E on the back of RCD which should be wired with the same way as an ordinary socket.
