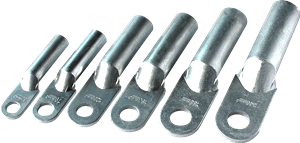

COPPER,ALUMINIUM CONNECTING TERMINALS

| Type |
Ø |
D |
d |
L |
L1 |
| DL-10 |
8.5 |
9 |
6 |
68 |
28 |
| DL-16 |
8.5 |
10 |
6 |
70 |
30 |
| DL-25 |
8.5 |
12 |
7 |
75 |
34 |
| DL-35 |
10.5 |
14 |
8.5 |
85 |
38 |
| DL-50 |
10.5 |
16 |
9.8 |
90 |
40 |
| DL-70 |
12.5 |
18 |
11.5 |
102 |
48 |
| DL-95 |
12.5 |
21 |
13.5 |
112 |
51 |
| DL-120 |
14.5 |
23 |
15 |
120 |
53 |
| DL-150 |
14.5 |
25 |
16.5 |
126 |
56 |
| DL-185 |
16.5 |
27 |
18.5 |
133 |
58 |
| DL-240 |
16.5 |
30 |
21 |
140 |
60 |
| DL-300 |
21 |
34 |
24 |
160 |
65 |
| DL-400 |
21 |
38 |
26 |
170 |
70 |
| DL-500 |
21 |
47 |
29 |
190 |
75 |
| DL-630 |
21 |
54 |
35 |
220 |
85 |
| DL-800 |
21 |
60 |
38 |
250 |
100 |
Application：
Connecting terminals are suitable for the conjuncton of wires,cable in the disreibution eqripment and the electrical equipment. |
