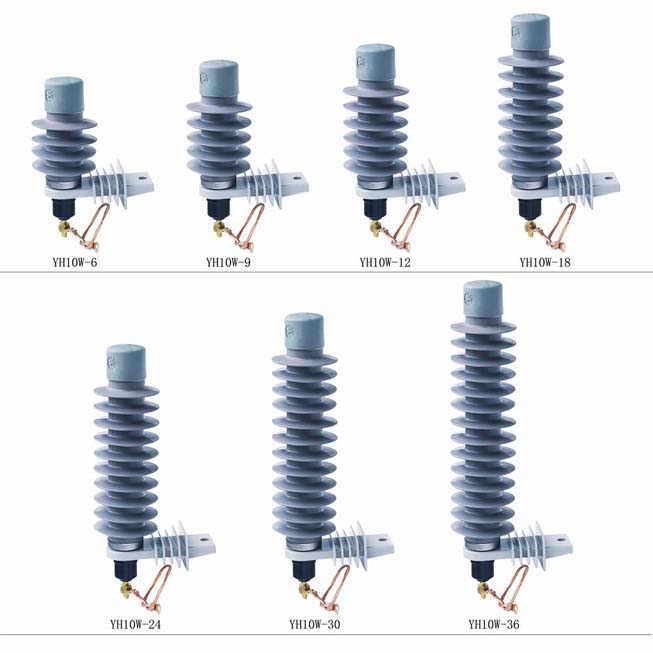

Polymeric Lighting Arrester without Gaps YH10W series
Polymeric Lighting Arrester Nominal Discharge Current 10kA
Application:
Massive productions of lightning arrester (MOA), either with porcelain or polymeric housing, are suitable in the systems of power generation, power transmission, power transformation, and power distribution under AC 220kV and below. They are mainly used to keep the amplitude of lighting impulse withstand voltage and switching impulse withstand voltage to the prescribed level.
Keystone:
Lightning arrester is the most advanced over-voltage protector in the world. Its core element, metal oxide varistor (MOV), is made under Japanese technology license.
Under the circumstance of normal operating voltage, the current through the lightning arrester is just on microampere degree. When suffered from over-voltage, the lightning arrester¡¯s excellent non-linear characteristic will make the current through the lightning arrester increase to several thousand amperes. And the lightning arrester will be under the circulating state and release over-voltage energy so as to protecting the power transmission equipments against the damage caused by the over-voltage.
Main Technical Parameters:
Polymeric Housed Lightning Arrester without Gaps Nominal Discharge Current 10kA
|
Type |
Rated
Voltage |
Maximun
Continuous
Operating
Voltage |
Current impulse residual voltage |
2ms Rectangular
current impulse
withstand |
4/10µs High
current impulse
withstand |
|
1/4µs
Lightning
Current
impulse |
8/20µs
Lightning
current
impulse |
30/60µs
Switching
current
impulse |
|
kV(rms) |
kV(rms) |
kV(crest) |
kV(crest) |
kV(crest) |
A |
kA(crest) |
|
YH10W-3 |
3 |
2.55 |
11.3 |
9 |
8.9 |
250 |
100 |
|
YH10W-6 |
6 |
5.1 |
22.6 |
18 |
16.8 |
250 |
100 |
|
YH10W-9 |
9 |
7.65 |
33.7 |
27 |
23.8 |
250 |
100 |
|
YH10W-10 |
10 |
8.4 |
36 |
30 |
23 |
250 |
100 |
|
YH10W-11 |
11 |
9.4 |
40 |
33 |
30 |
250 |
100 |
|
YH10W-12 |
12 |
10.2 |
42.2 |
36 |
27 |
250 |
100 |
|
YH10W-15 |
15 |
12.7 |
51 |
45 |
38.5 |
250 |
100 |
|
YH10W-18 |
18 |
15.3 |
61.5 |
54 |
46.2 |
250 |
100 |
|
YH10W-21 |
21 |
17.0 |
71.8 |
63 |
54.2 |
250 |
100 |
|
YH10W-24 |
24 |
19.5 |
82 |
72 |
62 |
250 |
100 |
|
YH10W-27 |
27 |
22.0 |
92 |
81 |
69.8 |
250 |
100 |
|
YH10W-30 |
30 |
24.4 |
102 |
90 |
79 |
250 |
100 |
|
YH10W-33 |
33 |
27.5 |
112 |
99 |
86.7 |
250 |
100 |
|
YH10W-36 |
36 |
29.0 |
123 |
108 |
92.4 |
250 |
100 |
|
YH10W-42 |
42 |
34.1 |
133.0 |
126 |
100.1 |
250 |
100 |
|
YH10W-48 |
48 |
39 |
152.0 |
150 |
126.0 |
400 |
100 |
|
YH10W-54 |
54 |
43 |
171.0 |
162 |
139.0 |
400 |
100 |
|
YH10W-60 |
60 |
48 |
208.0 |
180 |
160.0 |
400 |
100 |
|
YH10W-66 |
66 |
52.8 |
230.0 |
198 |
172.0 |
400 |
100 |
Condition of Use:
1. Ambient air temperature within the range of -40¡æ to +40¡æ;
2. Altitude above sea level not exceeding 2,000m;
3. Frequency of the A.C. power supply being 50Hz or 60Hz;
4. Power frequency voltage applied continuously between the terminals of the arrester not exceeding its continuous operating voltage;
5. Maximum wind speed not exceeding 35m/s;
6.The earthquake intensity not exceeding 7 degrees.
Characteristics:
-Low residual voltage
-Long protection distance
-High energy input capacity
-Stable volt-ampere characteristic even after multiple strokes
-Proof against ageing
-Explosion and shatter-resistant design
-Pollution resistant and UV-stable
-Housing resistant to rough handling
-Maintenance free
-Stable against shock and vibration
-High mechanical resistance
Technical Standard:
Confirmed to IEC60099-4.
|
