Application ¡¡¡¡HZ10D-¡õ/E119 welding machine switch is suitable to control welding machines under 100A,at 50Hz or 60Hz,AC 380V below. Designation
Classification 1 Classified by rated thermal current: ¡¡¡¡25A¡¢63A and 100A. 2 Classified change-over type: ¡¡¡¡type¢ñand¢ò.
Technical parameters
¡¡¡¡type |
HZ10D-25/E119 |
HZ10D-63/E119 |
HZ10D-100/E119 |
HZ10D-100/E119A |
¡¡¡¡Rated thermal current Ith |
A |
25 |
63 |
100 |
100 |
¡¡¡¡Rated working voltage Ue |
V |
240 |
440 |
240 |
440 |
240 |
440 |
240 |
440 |
¡¡¡¡Rated working current Ie |
A |
25 |
25 |
63 |
63 |
100 |
100 |
100 |
100 | Mechanical life ¡¡¡¡Mechanical life without load:0.01¡Á106 times. ¡¡¡¡Mechanical life with load:0.01¡Á106 times.

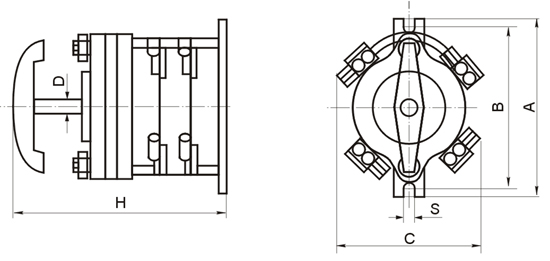

Dimensions and installation
type |
|
A |
B |
C |
D |
H |
S |
HZ10D-25/E119 |
100 |
90 |
90 |
¦µ8 |
140 |
6 |
HZ10D-63/E119 |
142 |
128 |
110 |
¦µ9 |
165 |
7 |
HZ10D-100/E119 |
142 |
128 |
128 |
¦µ9 |
210 |
7 |
HZ10D-100/E119A |
142 |
128 |
128 |
¦µ9 |
188 |
7 | Connection diagram

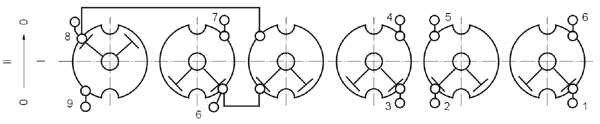

HZ10D-¡õ/E119 Connection diagram

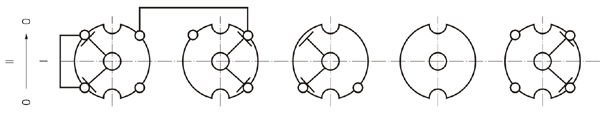

HZ10D-100/E119A Connection diagram
| | |
| | | |
|
|
