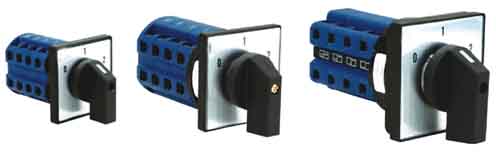

Application
HZ25D mainly applied in control of electrial circuits and electrial motors.
Technical parameters
|
type |
HZ25D-10 |
HZ25D-20 |
HZ25D-40 |
|
Rated working voltage Ue |
V |
440 |
440 |
440 |
|
Rated thermal current Ith |
A |
10 |
20 |
40 |
|
Rated working current Ie |
A |
4 |
8 |
16 |
|
Power P |
kW |
1.7 |
4 |
7.5 |
Mechanical life
Mechanical life without load:0.01×106 times,operation frequency is 120 times/h.
Mechanical life with load:0.03×106times under AC-23A,0.03×106 times under AC-3,0.03×106 times under AC-4,operation frequency is 120 times/h.

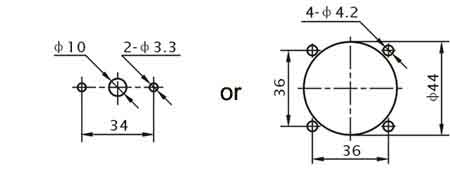

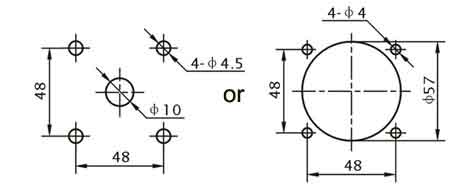

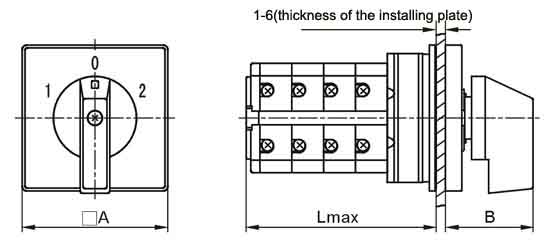

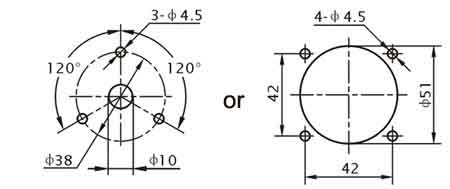

Dimensions
|
type |
|
|
A |
Lmax |
B |
|
HZ25D-10 |
50 |
|
35 |
|
HZ25D-20 |
56 |
24+13n |
38 |
|
HZ25D-40 |
64 |
30+14n |
42 | |
