Application
¡¡¡¡HZ12 series switch applied in AC 50Hz or 60 Hz,rated working volatge up 500V,to control two main power,as well as the load in the high voltage circuit for motors.
Designation
Classification
¡¡¡¡HZ12 switch is classied into:
-basic type;
-To on and off teh electrical circuit;
-Pad-lock GS type:It¡¯s able to use a pad-lock to lock the switch in on/off position;
-key-lock type:uses a key to retat the switch.
Technical parameters
|
¡¡¡¡type |
HZ12-16 |
HZ12-25 |
HZ12-40 |
|
¡¡¡¡Rated thermal current Ith |
A |
16 |
25 |
|
|
¡¡¡¡Rated working voltage Ue |
V |
240 |
440 |
240 |
440 |
240 |
440 |
|
¡¡¡¡Rated working current Ie |
|
|
|
|
|
|
|
|
¡¡¡¡AC-3 |
A |
|
11 |
|
15 |
|
30 |
|
¡¡¡¡AC-15 |
A |
8 |
6 |
12 |
8 |
22 |
12 |
|
¡¡¡¡AC-23 |
A |
|
11 |
|
15 |
|
30 |
|
¡¡¡¡AC-21 |
A |
|
16 |
|
25 |
|
40 |

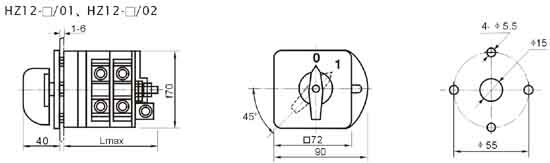

Dimensions and installation
|
type |
Lmax(mm) |
|
HZ12-16 |
86 |
|
HZ12-25 |
89 |
|
HZ12-40 |
89 |
|

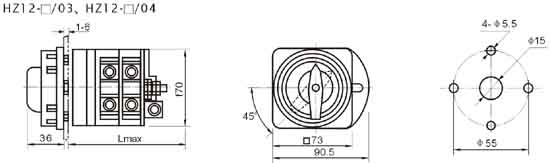

type |
Lmax(mm) |
|
HZ12-16 |
86 |
|
HZ12-25 |
89 |
|
HZ12-40 |
89 |
|

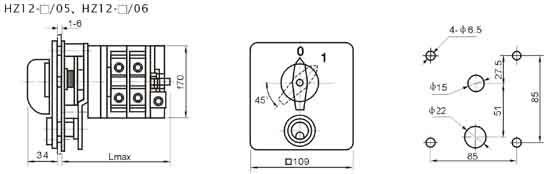

type |
Lmax(mm) |
|
HZ12-16 |
107 |
|
HZ12-25 |
110 |
|
HZ12-40 |
110 |
|
|
| |
|

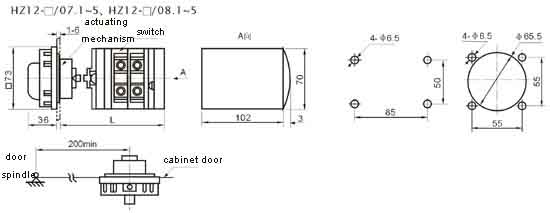

¡¡¡¡¡¡¡¡¡¡¡¡type |
L(mm) |
|
HZ12-¡õ/07.1 |
HZ12-¡õ/08.1 |
145¡«149 |
|
HZ12-¡õ/07.2 |
HZ12-¡õ/08.2 |
170¡«174 |
|
HZ12-¡õ/07.3 |
HZ12-¡õ/08.3 |
195¡«199 |
|
HZ12-¡õ/07.4 |
HZ12-¡õ/08.4 |
220¡«224 |
|
HZ12-¡õ/07.5 |
HZ12-¡õ/08.5 |
245¡«249 |
| |
|
|
|

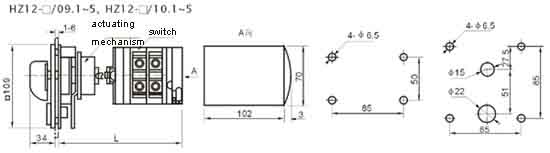

¡¡¡¡¡¡¡¡¡¡¡¡type |
L(mm) |
|
HZ12-¡õ/09.1 |
HZ12-¡õ/10.1 |
168¡«171 |
|
HZ12-¡õ/09.2 |
HZ12-¡õ/10.2 |
193¡«196 |
|
HZ12-¡õ/09.3 |
HZ12-¡õ/10.3 |
218¡«221 |
|
HZ12-¡õ/09.4 |
HZ12-¡õ/10.4 |
243¡«246 |
|
HZ12-¡õ/09.5 |
HZ12-¡õ/10.5 |
268¡«271 | |
