Application
¡¡¡¡LW15 rotary switch applied to change over of circuits and control motors as well.

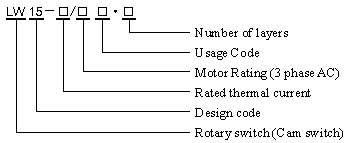

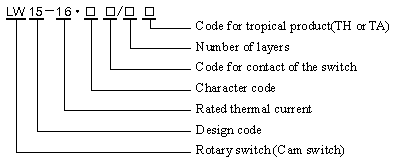

Designation
Use as control switches



Use as motor switch



¡¡Re:Q1¡¢Q2 for start and run; N for reversing; S for 2 speed; SN for 2 speed and revesing.

Technical parameters
Description
LW15-10
LW15-16
Rated thermal current Ith
10
16
Rated working voltage Ue
V
240
250
380
240
250
380
Rated working current Ie
AC-15
A
4
4
6
6
AC-13
A
0.12
0.27
AC-3
A
6
12
AC-4
A
4
10
Power  P
AC-3
kW
2.8
5.5
AC-4
kW
1.7
4.5

Mechanical life
¡¡¡¡Mechanical life without load:0.3¡Á106times,operation frequency is 120 times/h.
¡¡¡¡Mechanical life with load:0.1¡Á106times under AC-15,0.1¡Á106times under DC-13,,operation frequency is 300 times/h,0.1¡Á106times under AC-3,0.1¡Á106times under AC-4,operation frequency is 120 times/h.

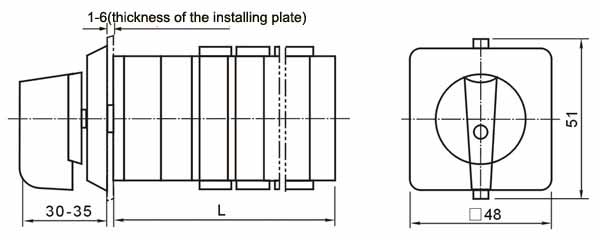

Dimensions and installation
Dimensions

¡¡¡¡¡¡ Limited movement: L=35+13n £¨n for number of layers£©
¡¡¡¡¡¡Sping return: L=31.5+13n £¨n for number of layers£©


Installation
