Application ¡¡LW8D rotary switch applied to change over of circuits and control motors as well.
Designation Use as control switches
¡¡¡¡Tropical product code:TH ¡¡¡¡Y represent:round installation
| Use as motor switch
¡¡¡¡Re:Q for start and run; N for reversing; S for 2 speed. | Technical parameters
¡¡¡¡type |
LW8D-10 |
LW8D-20 |
Rated thermal current Ith |
A |
10 |
20 |
|
V |
240 |
250 |
380 |
240 |
250 |
380 |
|
|
|
|
|
|
|
|
¡¡¡¡AC-15 |
A |
1.60 |
|
0.95 |
4.60 |
|
2.60 |
¡¡¡¡AC-3 |
A |
|
|
5.00 |
|
|
12 |
¡¡¡¡DC-13 |
A |
|
0.14 |
|
|
0.27 |
| Mechanical life ¡¡¡¡Mechanical life without load:0.3¡Á106times,operation frequency is 120 times/h. ¡¡¡¡Mechanical life with load:0.1¡Á106times under AC-15,0.1¡Á106times under DC-13,operation frequency is 300 times/h.

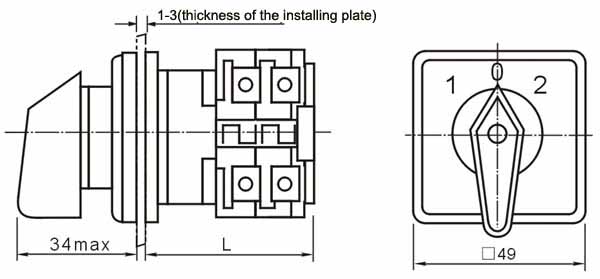

Dimensions and installation Square escutcheon plate

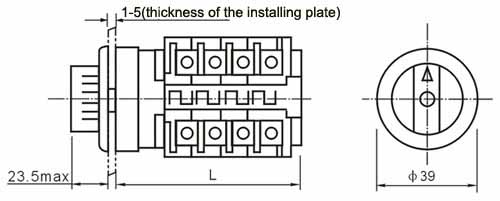

Round escutcheon plate
|
¡¡
|
type |
L(mm) |
Square escutcheon plate |
Round escutcheon plate |
LW8D-10 |
22+10n |
13+10n |
LW8D-20 |
22+13n |
35+13n |
|
Installation |

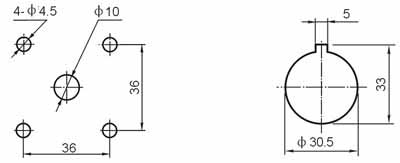

¡¡¡¡ | square escutcheon plate round escutcheon plate
|
