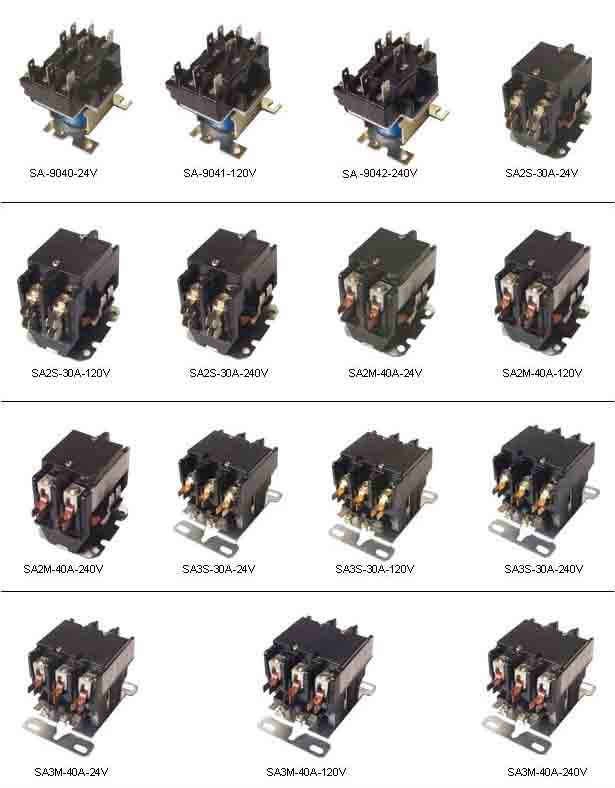

SA series Air Conditioning AC Contactor ( 20-40FLA  1,1.5 & 2 Pole Definite Purpose AC Contactor)

	Product Description						roduct Feature
							This SA series contactors are mainly applicable to a line of AC 50Hz or 60Hz, rated working voltage up to 600V and rated working current up to 40A, used to close or/and to switch off the line.		Unique amortization system to eliminate contact bounce Low cost Accessories modification quickly and easily without using tools Various kinds of terminals for customers' special requirements Easy to change the coil General amounting size, easy for replacement Double E magnet assembly providing optimal performance with reduced power consumption Effective dustproof cover available Silver Cadmium Oxide contacts provide long electrical endurance. Class F high temperature insulated coils are standard.	20-40 FLA 1,1.5&2 pole DP Contactors 20-40 FLA 3Pole DP Contactors 25-40 FLA 4pole DP Contactors 50&60 FLA 3 pole DP Contactors 75&90 FLA 3 pole DP Contactors
		The Definite Purpose Contactors (1-pole, 1.5-pole and 2-pole, 20-40A ) are ideal for HVAC air conditioning,refrigeration, heating, data processing, welding, elevators, hoists & cranes, lighting, pools & spas and food service equipment.
		Technology Data
		NUMBER OF POLES COIL VOLTAGE 50/60HZ FULL LOAD AMPS LINE VOLTAGE LOCKED ROTOR AMPS RESISTIVE SMPS RATING MAXIMUM HORSEPOWER BOX QUANTITY APPROX UNIT WEIGHT VOLTAGE SINGLE PHASE 20FLA-1,1.5 & 2POLE 1P 1P with shunt 24 120 208/240 277 20 240/277 480 600 120 100 80 30 30 30 120 240 1 2 50 .27 kg 2P 24 120 208/240 277 20 240/277 480 600 120 100 80 30 30 30 120 240 1 2 50 .27 kg 25FLA-1,1.5 & 2POLE 1P 1P with shunt 24 120 208/240 277 25 240/277 480 600 150 125 100 30 30 30 120 240 1 2 50 .23 kg 2P 24 120 208/240 277 25 240/277 480 600 150 125 100 35 35 35 120 240 2 3 50 .27 kg 30FLA-1,1.5 & 2POLE 1P 1P with shunt 24 120 208/240 277 30 240/277 480 600 150 125 100 40 40 40 120 240 1 2 50 .23 kg 2P 24 120 208/240 277 30 240/277 480 600 150 125 100 40 40 40 120 240 2 3 50 .27 kg 40FLA-1,1.5 & 2POLE 1P 1P with shunt 24 120 208/240 277 40 240/277 480 600 200 160 120 50 50 50 120 240 2 3 50 .23 kg 2P 24 120 208/240 277 40 240/277 480 600 200 160 120 50 50 50 120 240 2 3 50 .27 kg   OTHER SPECIFCATIONS 20-35 FLA 40 FLA Line and Load Terminals #10-32Screw* BoxLugs* Wire Size Awg Min-Max 16-8* 14-4Cu/Al Tightening Torque(recommended) 25in.Ibs 40 in.Ibs Coil Termination Dual.250 QC(2) Dual.250 QC(2) Quick Connects.250 std.--1 or 1.5 Pole Quad Quad Quick Connects.250 std.--2 Pole Dual or Quad Dual or Quad Covers Optional Standard Insulation System 130 Class B 130 Class B *stranding must be split for #8 wire *Permissible Ambient Temperature: -40C/65C -40F/150F     COIL TECHNICAL DATA 50/60hz 1POLE CONTACTORS 2POLE CONTACTORS   Nominal Coil Voltage 24 120 208/240 277 24 120 208/240 277   Maximum Pickup Volts 18 88 177 221 18 88 177 221   Drop-Out Volts Range 6-15 20-70 40-140 50-165 6-15 20-70 40-140 50-165   Nominal Inrush VA@50Hz 31 31 31 31 33 33 33 33   Nominal Inrush VA@60Hz 28 28 28 28 30 30 30 30   Nominal Sealed VA@50Hz 6 6 6 6 8 8 8 8   Nominal Sealed VA@60Hz 5 5 5 5 6.5 6.5 6.5 6.5   Nominal DC Resistance-Ohms 18 420 1800 2500 11 237 1000 1600
