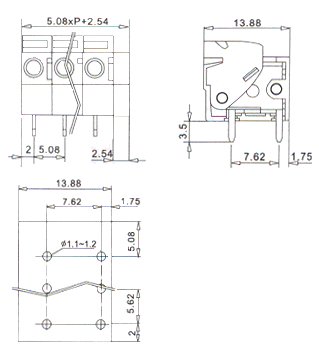

| JK142R-508 Screwless Terminal Block |
| Material |
|
| Terminal screw |
: Brass. Tin plated. 0.5t |
| Spring |
: Stainless strip steel |
|
( SUS301 )0.4t |
| Insulationg body |
: Polyamide66(UL94V-0) |
| lever, cover |
: Polyamide66(UL94V-0) |
|
|
|
|
|
|
|
|
| |
|
| |
|
| Electrical |
|
| Voltage rating |
: 300VAC |
| Current rating |
: 10Amps/way max. |
| Insulation resistance |
: 5000MΩ/500V |
| Wire range |
: 14-24AWG |
| Operation temperature |
: -40℃ to+105℃ |
| |
| |
 |
|
