| 1)¡¢Features: |
| The capacitor takes heavy-edge metallized. AI/Zn PP film as dielectrie, The elecents are tight winded by velocity winders and camed in aluminum cases. Refined castor oil is adopted as impregnation agent in which the capacitors are soaked in vacuum and high temperature condition.Those make a more reliable performance and longer lifespan for a capacitor.Meanwhile the second generation of mechanical anti-explosion desing is selected as blast-proof secure measure for our capacitors.The reliability is more afirmativel ebgabced. |
| 2)¡¢Applications |
| Broadly applied to starting and running of single-phase AC motors at 50Hz(60Hz)frequency for air conditioners and high power illuminators for the sake of power factor compensation. |
| 3)¡¢Technical Specifications |
|
Standard:GB3667-1997,same asIEC 60252:1993;IEC61048&61049:1993
Climate type:40/70/21,40/85/21
Capacitance tolerance:¡À5%
IR¡Ý3000s
Dielectric dissipation factor:tg¦Ä¡Ü0.002(50Hz~100Hz)
Life expectancy:3000h(Class C)or10000h(Class B) |
| 4)¡¢Application requirements: |
Altitude:¡Ü3000m
Residual voltage in application: Less than 10%of rated voltage
Allowed maximum voltage:Less than 1.1 times of rated voltage
Permissible maximum current: Less than1.3 times of rated current ¡£ |

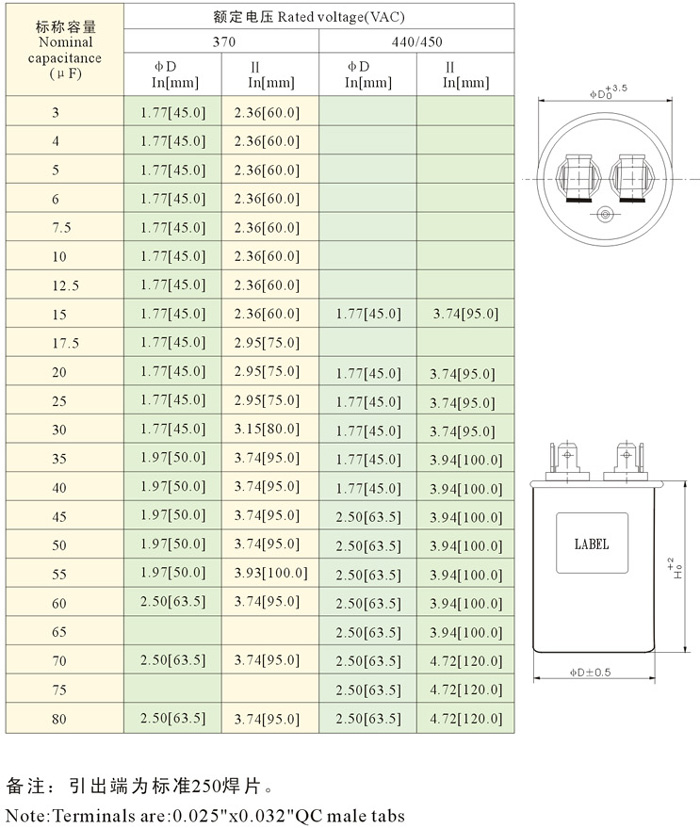

| 5)¡¢Dimensions£¨mm£© |
|

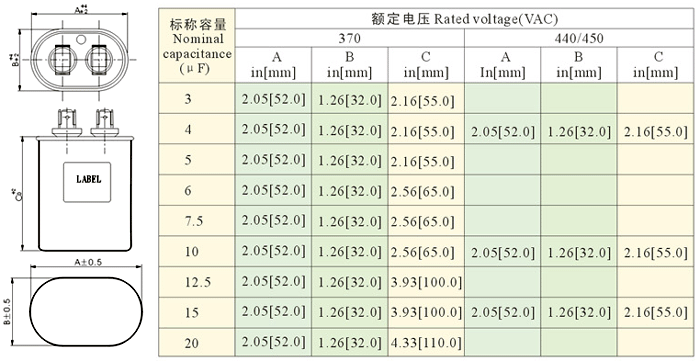

( II ) AC Motor Capacitor(Voal) Type CBB65
|
Dimensions£¨mm£© |

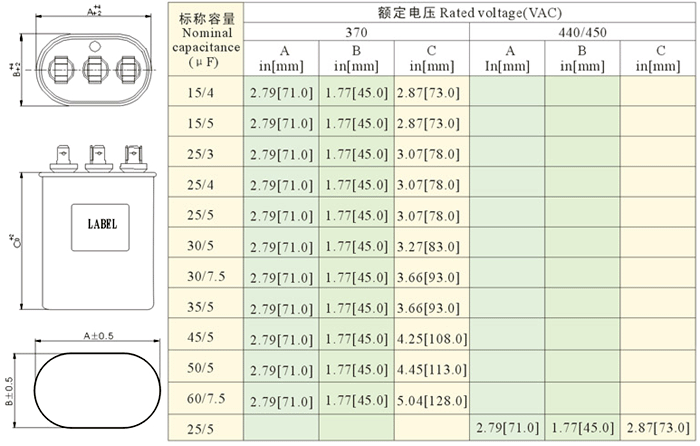

 | ( III ) Dual AC Motor Capacitor(Oval) Type CBB65
| Dimensions£¨mm£© |
|
Note:Terminals are:0.025"x0.032"QC male tabs | |
